Genie

GS-5390 RT

Aerial Lift

Max Platform Height
636 in
Overall Length
16 in
Overall Width
91 in
All aerial lifts

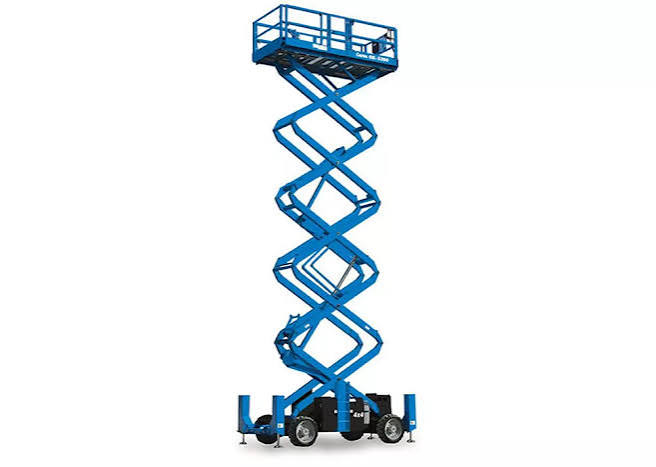

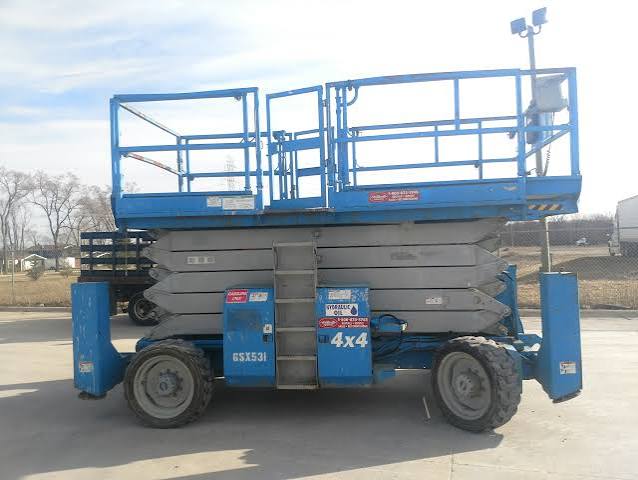

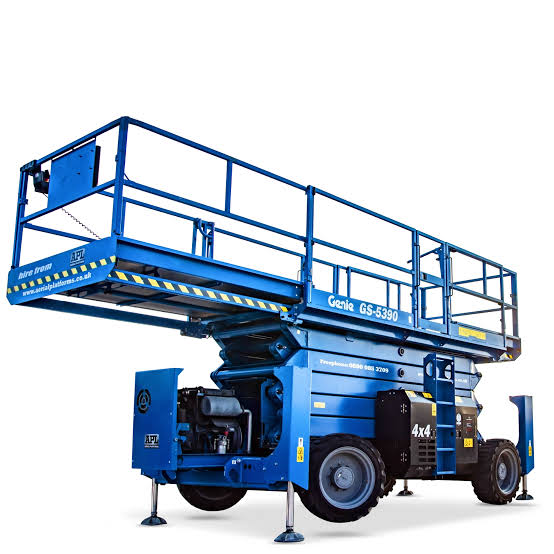

Genie GS-5390 RT Aerial Lift
1 / 5
Image 1 of 5
Image: heli.be

Specifications

29 data points

Engine

Engine specifications
Engine ModelDSG-423
Gross Power75.0 hp
Fuel Typegas/LPG

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase113 in
Overall Length16 in
Overall Width91 in
Turning Radius210 in
Stowed Width91 in
Stowed Height98 in
Boom Type/Size53.00 ft (16.15 m)
Height w/ Rails125 in
Height w/o Rails98 in

Transmission

Transmission specifications
4WDyes

Tires & Wheels

Tires & Wheels specifications
Tire Size12x33/30x84

Performance

Performance specifications
Operating Weight16,616 lb
Max Speed5.0 mph
Tire Size12x33
Hydraulic System Fluid Capacity30.1 gal
Tire Fill/TypeFoam-filled rough terrain
Fuel Capacity30.1 gal

Platform

Platform specifications
Max Platform Height636 in
Max Platform Weight Capacity1,499 lb
Platform Inner Length157 in
Platform Inner Width72 in
Max Working Height715 in
Lift Time55.0 s
Deck Extension108 in
Lower Time49.0 s
