Genie
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5

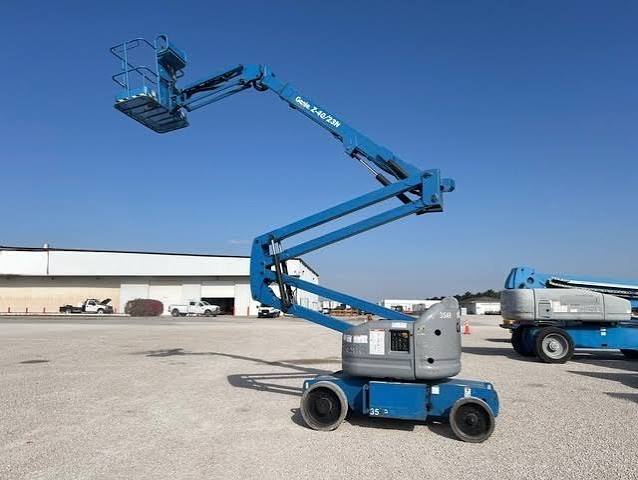

Image 1 of 5
Specifications
21 data points
Engine
| System Voltage | 48 V |
|---|---|
| Battery Amp Hours | 315 |
| Number of Batteries | 8 |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Wheelbase | 78 in |
| Overall Length | 22 in |
| Overall Width | 60 in |
| Turning Radius | 126 in |
| Overall Height - mast lowered | 78 in |
Performance
| Operating Weight | 15,230 lb |
|---|---|
| Max Speed | 4.5 mph |
| Tire Size | front: 22x7x17.75 rear: 25.6x7 |
| Hydraulic System Fluid Capacity | 8.0 gal |
| Tire Fill/Type | Solid non-marking |
Platform
| Max Platform Height | 486 in |
|---|---|
| Max Platform Weight Capacity | 500 lb |
| Platform Inner Length | 56 in |
| Platform Inner Width | 30 in |
| Max Working Height | 564 in |
| Max Horizontal Reach | 272 in |
| Platform Rotation | 180 ° |
