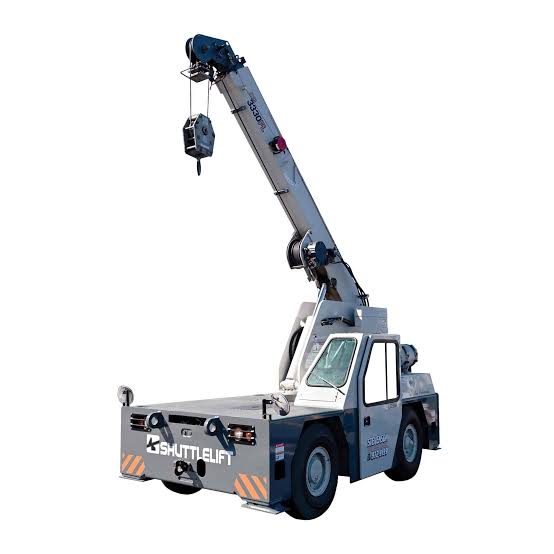

Grove
Shuttlelift
3330F
Carrydeck Crane
31 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 11,074 lb |
|---|---|
| Operating Voltage | 12 V |
| Tire Size | 8.25X15-12PR |
| Carrier Fuel Capacity | 29.1 gal |
| Number of Axels | 2 |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Transport Width | 74 in |
| Transport Height | 86 in |
| Width w/ Outriggers Extended | 110 in |
| Upper Structure Tail Swing Radius | 35 in |
| Carrier Length | 143 in |
Transmission
| Max Speed - Forward | 15.0 mph |
|---|---|
| Transmission Type | automatic |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 1 |
Boom
| Max Lift Capacity | 12,000 lb |
|---|---|
| Max Elevating Angle | 70 ° |
| Max Height @ Max Raise Angle - no jib | 240 in |
| Min Height @ Max Raise Angle | 114 in |
| Number of Sections | 3 |
| Swing Speed | 2 rpm |
| Max Working Radius | 216 in |
| Min Working Radius | 48 in |
CARRIER ENGINE
| Net Power | 66.4 hp |
|---|---|
| Make | Grove |
| Power Measured @ | 3,000 rpm |
| Max Torque | 124 lb-ft |
| Torque Measured @ | 2,000 rpm |
