Shuttlelift

3330FL

Carrydeck Crane

Gross Power
99.0 hp
Operating Weight
15,179 lb
Max Lift Capacity
17,000 lb
Max Speed - Forward
22.2 mph
All carrydeck cranes

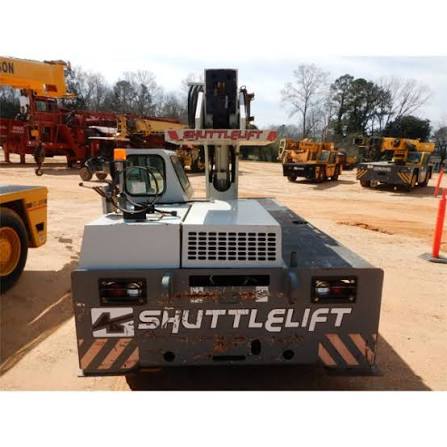

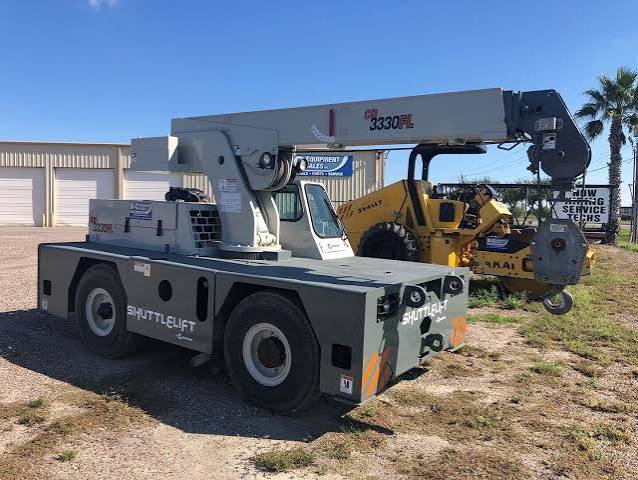

Shuttlelift 3330FL Carrydeck Crane
1 / 5
Image 1 of 5
Image: stevensoncrane.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,179 lb
Operating Voltage12 V
Tire Size10.00x15 14PR
Carrier Fuel Capacity18.5 gal
Number of Axels2
Alternator Supplied Amperage63 A
Upper Structure Hydraulic System Fluid Capacity23.6 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width79 in
Transport Height95 in
Transport Length189 in
Width w/ Outriggers Extended122 in
Upper Structure Tail Swing Radius57 in
Carrier Length144 in

Transmission

Transmission specifications
Max Speed - Forward22.2 mph
Transmission TypeClark synchromesh
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity17,000 lb
Max Elevating Angle60 °
Max Height @ Max Raise Angle - no jib362 in
Min Height @ Max Raise Angle150 in
Number of Sections3
Swing Speed2 rpm
Max Working Radius402 in
Min Working Radius60 in
Height403 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power99.0 hp
Displacement201 in³
MakeShuttlelift
Power Measured @2,600 rpm
