Grove

AT400

All Terrain Crane

Gross Power
189.1 hp
Max Lift Capacity
44,000 lb
Max Speed - Forward
56.0 mph
Transport Width
96 in
All all terrain cranes

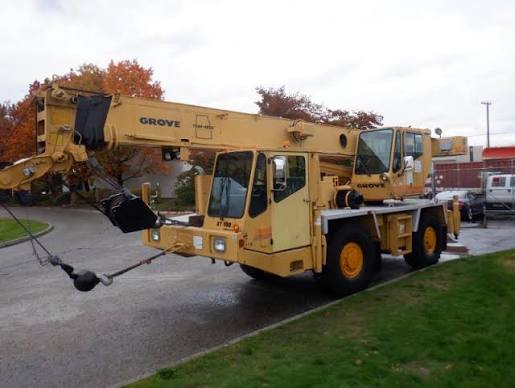

Grove AT400 All Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight37,776 lb
Tire Size16.00R20-22PR
Carrier Fuel Capacity39.9 gal
Operating Voltage24 V
Number of Axels2

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width96 in
Transport Height132 in
Transport Length395 in
Upper Structure Tail Swing Radius134 in
Carrier Length293 in

Transmission

Transmission specifications
Max Speed - Forward56.0 mph
Transmission Typefully automatic APC 100
Number of Forward Gears6
Number of Reverse Gears3

Boom

Boom specifications
Max Lift Capacity44,000 lb
Number of Sections3
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle324 in
Max Elevating Angle78 °
Swing Speed2 rpm
Min Working Radius96 in
Max Working Radius1,020 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power189.1 hp
Displacement360 in³
Max Torque435 lb-ft
Torque Measured @1,700 rpm
MakeGrove
Power Measured @2,500 rpm

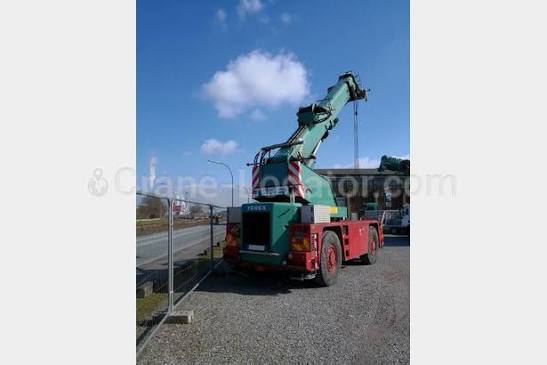

Comparable machines
