Terex

AC 30

All Terrain Crane

Gross Power
230.7 hp
Max Lift Capacity
66,139 lb
Max Speed - Forward
49.8 mph
Transport Width
100 in
All all terrain cranes

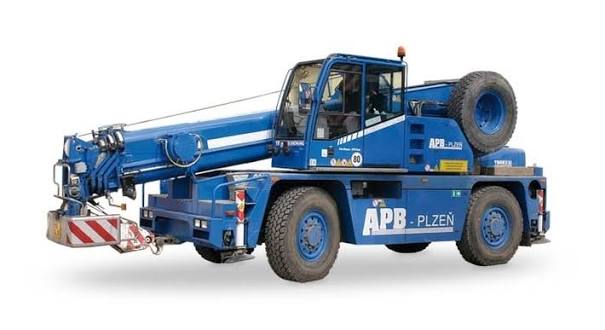

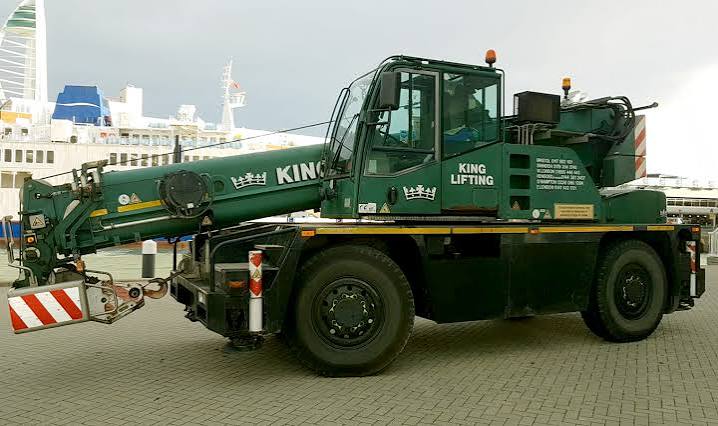

Terex AC 30 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight48,502 lb
Tire Size445/65 R 22.5
Carrier Fuel Capacity68.7 gal
Operating Voltage24 V
Number of Axels2
Alternator Supplied Amperage70 A

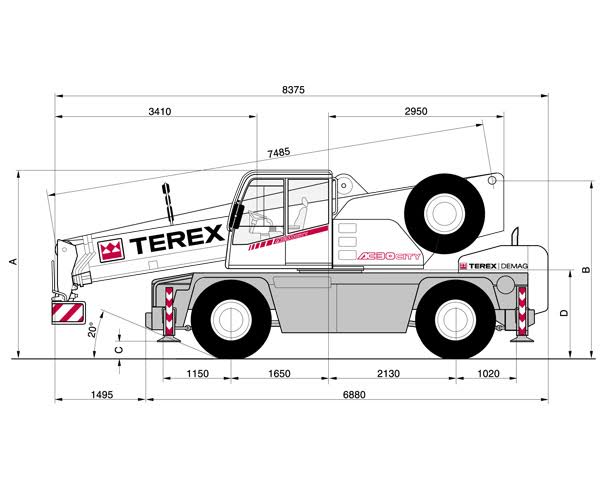

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width100 in
Transport Height122 in
Transport Length330 in
Width w/ Outriggers Extended233 in
Upper Structure Tail Swing Radius117 in
Carrier Length271 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Transmission TypeAllison automatic
Number of Forward Gears6
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity66,139 lb
Number of Sections4
Max Height @ Max Raise Angle - no jib1,091 in
Min Height @ Max Raise Angle395 in
Max Elevating Angle78 °
Swing Speed2 rpm
Min Working Radius107 in
Max Working Radius867 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power230.7 hp
Max Torque670 lb-ft
Torque Measured @1,300 rpm
MakeTerex
Power Measured @2,300 rpm
