Tadano

AR 300E

All Terrain Crane

Gross Power
222.0 hp
Max Lift Capacity
66,139 lb
Max Speed - Forward
43.5 mph
Transport Width
100 in
All all terrain cranes

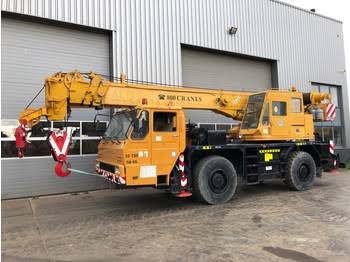

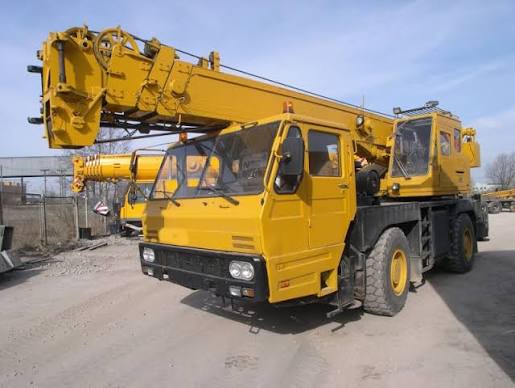

Tadano AR 300E All Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.ae

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,911 lb
Tire Size14.00R24
Carrier Fuel Capacity52.9 gal
Operating Voltage24 V

Dimensions

Dimensions specifications
Transport Width100 in
Transport Height144 in
Transport Length393 in
Width w/ Outriggers Extended236 in
Upper Structure Tail Swing Radius114 in

Transmission

Transmission specifications
Max Speed - Forward43.5 mph
Transmission TypeConstant mesh full power shift
Number of Forward Gears6
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity66,139 lb
Number of Sections4
Max Height @ Max Raise Angle - no jib1,035 in
Min Height @ Max Raise Angle333 in
Max Elevating Angle80 °
Swing Speed2 rpm

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power222.0 hp
Displacement680 in³
Max Torque564 lb-ft
Torque Measured @1,400 rpm
MakeTadano
Power Measured @2,200 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeTadano
