Link Belt

ATC-822

All Terrain Crane

Gross Power
230.0 hp
Max Lift Capacity
48,502 lb
Max Speed - Forward
55.0 mph
Transport Width
97 in
All all terrain cranes

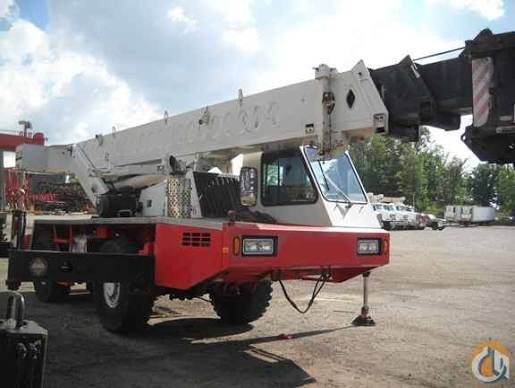

Link Belt ATC-822 All Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,223 lb
Tire Size16.0 R 20
Carrier Fuel Capacity40.0 gal
Operating Voltage24 V
Alternator Supplied Amperage130 A

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width97 in
Transport Height121 in
Transport Length389 in
Width w/ Outriggers Extended239 in
Upper Structure Tail Swing Radius133 in
Carrier Length306 in

Transmission

Transmission specifications
Max Speed - Forward55.0 mph
Transmission TypeZF full powershift
Number of Forward Gears6
Number of Reverse Gears3

Boom

Boom specifications
Max Lift Capacity48,502 lb
Number of Sections3
Max Height @ Max Raise Angle - no jib843 in
Min Height @ Max Raise Angle326 in
Max Elevating Angle78 °
Swing Speed2 rpm
Height840 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power230.0 hp
Displacement359 in³
Max Torque605 lb-ft
Torque Measured @1,500 rpm
MakeLink-Belt
Power Measured @2,500 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeLink-Belt
