Grove
Sany

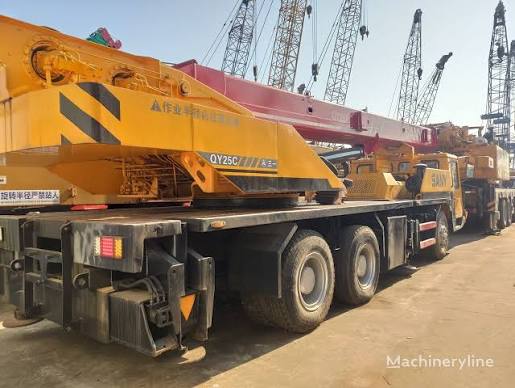

QY25C
All Terrain Crane
20 specifications
1 / 5
Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 52,911 lb |
|---|---|
| Tire Size | 14.00R25 |
| Carrier Fuel Capacity | 79.3 gal |
| Operating Voltage | 24 V |
| Number of Axels | 2 |
| Alternator Supplied Amperage | 80 A |
Dimensions
| Transport Width | 100 in |
|---|---|
| Transport Height | 135 in |
| Transport Length | 403 in |
| Width w/ Outriggers Extended | 245 in |
| Upper Structure Tail Swing Radius | 122 in |
| Carrier Length | 326 in |
Transmission
| Max Speed - Forward | 46.0 mph |
|---|---|
| Transmission Type | powershift |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Boom
| Max Lift Capacity | 31,000 lb |
|---|---|
| Number of Sections | 4 |
| Max Height @ Max Raise Angle - no jib | 1,143 in |
| Min Height @ Max Raise Angle | 350 in |
| Max Elevating Angle | 82 ° |
| Swing Speed | 3 rpm |
| Min Working Radius | 36 in |
| Max Working Radius | 312 in |
CARRIER ENGINE
| Net Power | 275.0 hp |
|---|---|
| Max Torque | 811 lb-ft |
| Torque Measured @ | 1,300 rpm |
| Make | Grove |
| Power Measured @ | 2,300 rpm |

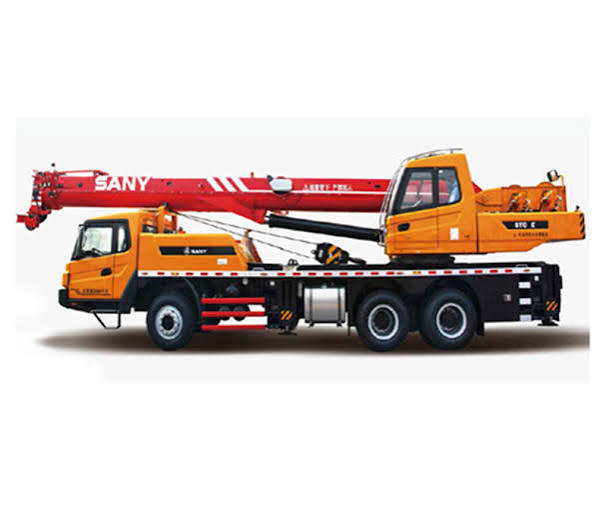

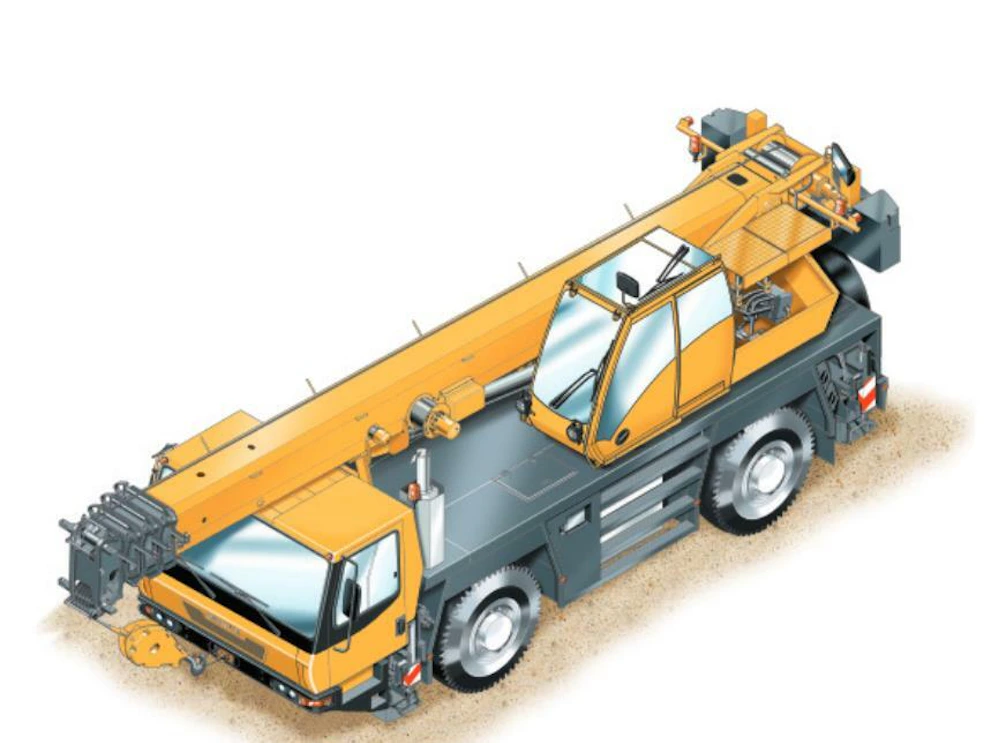

Comparable machines
