Grove

GMK3050

All Terrain Crane

Gross Power
348.7 hp
Max Speed - Forward
52.9 mph
Transport Width
113 in
All all terrain cranes

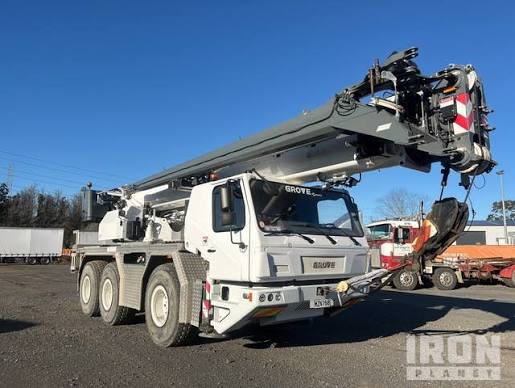

Grove GMK3050 All Terrain Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight74,180 lb
Tire Size20.5R25
Carrier Fuel Capacity95.2 gal
Operating Voltage24 V
Number of Axels3
Alternator Supplied Amperage100 A

Dimensions

Dimensions specifications
Transport Width113 in
Transport Height138 in
Transport Length434 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius126 in
Carrier Length346 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeAllison automatic MD 3066 P
Number of Forward Gears6
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib1,500 in
Min Height @ Max Raise Angle384 in
Max Elevating Angle82 °
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius1,320 in
Height2,196 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power348.7 hp
Max Torque1,276 lb-ft
Torque Measured @1,080 rpm
MakeGrove
Power Measured @1,800 rpm
