Grove

GMK4090

All Terrain Crane

Gross Power
429.2 hp
Max Speed - Forward
48.8 mph
Transport Width
93 in
All all terrain cranes

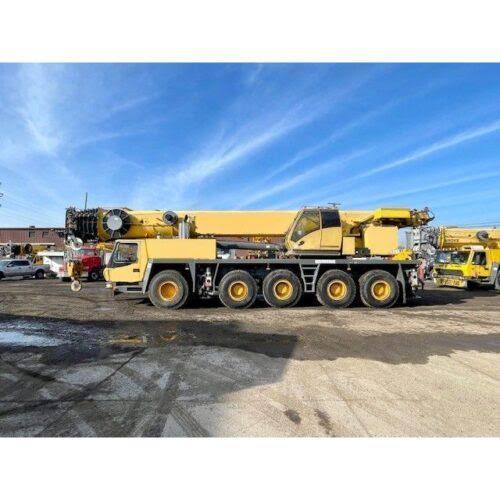

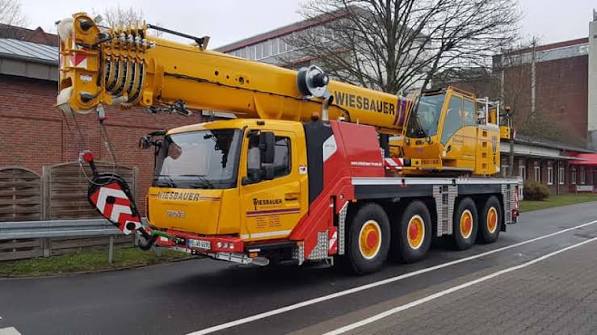

Grove GMK4090 All Terrain Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight88,218 lb
Tire Size385/95 R25
Operating Voltage24 V
Number of Axels4
Alternator Supplied Amperage150 A
Upper Structure Fuel Capacity105.7 gal

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width93 in
Transport Height150 in
Transport Length499 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius133 in
Carrier Length437 in

Transmission

Transmission specifications
Max Speed - Forward48.8 mph
Transmission TypeMercedes G 280
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib1,692 in
Min Height @ Max Raise Angle444 in
Max Elevating Angle82 °
Min Working Radius96 in
Max Working Radius1,560 in
Height2,880 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power429.2 hp
Max Torque1,549 lb-ft
Torque Measured @1,300 rpm
MakeGrove
Power Measured @1,700 rpm
