Krupp

KMK5120

All Terrain Crane

Gross Power
496.2 hp
Max Lift Capacity
240,000 lb
Max Speed - Forward
43.0 mph
Transport Width
119 in
All all terrain cranes

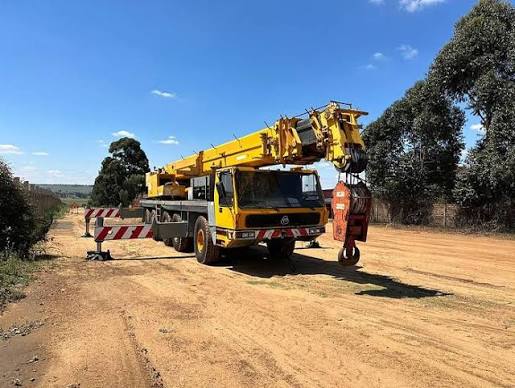

Krupp KMK5120 All Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight110,500 lb
Tire Size16R25/20.5R25
Carrier Fuel Capacity100.0 gal
Operating Voltage24 V
Number of Axels5
Upper Structure Fuel Capacity50.0 gal

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height150 in
Transport Length592 in
Width w/ Outriggers Extended324 in
Upper Structure Tail Swing Radius170 in
Carrier Length534 in

Transmission

Transmission specifications
Max Speed - Forward43.0 mph
Max Speed - Reverse9.0 mph
Transmission TypeAllison automatic CLBT 755
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity240,000 lb
Number of Sections4
Max Height @ Max Raise Angle - no jib1,644 in
Min Height @ Max Raise Angle552 in
Max Elevating Angle84 °
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,440 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power496.2 hp
Max Torque1,490 lb-ft
Torque Measured @1,600 rpm
MakeKrupp
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power139.5 hp
MakeKrupp
Max Torque417 lb-ft
Torque Measured @1,600 rpm
Power Measured @1,800 rpm
