Grove

GMK6220

All Terrain Crane

Gross Power
165.0 hp
Max Lift Capacity
138,800 lb
Max Speed - Forward
47.9 mph
Transport Width
121 in
All all terrain cranes

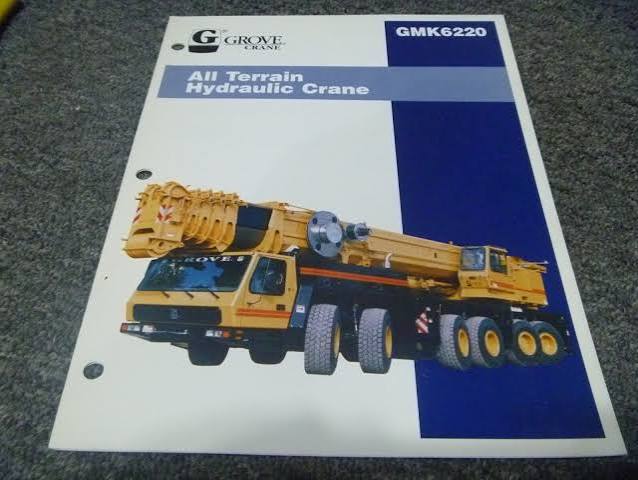

Grove GMK6220 All Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight138,891 lb
Tire Size20.5R25
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Number of Axels6
Alternator Supplied Amperage28 A

Dimensions

Dimensions specifications
Transport Width121 in
Transport Height157 in
Transport Length639 in
Width w/ Outriggers Extended236 in
Gradeability46.0 %
Carrier Length596 in

Transmission

Transmission specifications
Max Speed - Forward47.9 mph
Transmission TypeAllison automatic CLT 755
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity138,800 lb
Number of Sections6
Max Height @ Max Raise Angle - no jib2,363 in
Min Height @ Max Raise Angle531 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius531 in
Max Working Radius2,363 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power165.0 hp
Max Torque538 lb-ft
Torque Measured @1,500 rpm
MakeGrove
Power Measured @2,000 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power165.0 hp
MakeGrove
Max Torque538 lb-ft
Torque Measured @1,500 rpm
Power Measured @2,000 rpm
