Grove

GMK6400

All Terrain Crane

Gross Power
543.2 hp
Max Lift Capacity
900,000 lb
Max Speed - Forward
52.9 mph
Transport Width
119 in
All all terrain cranes

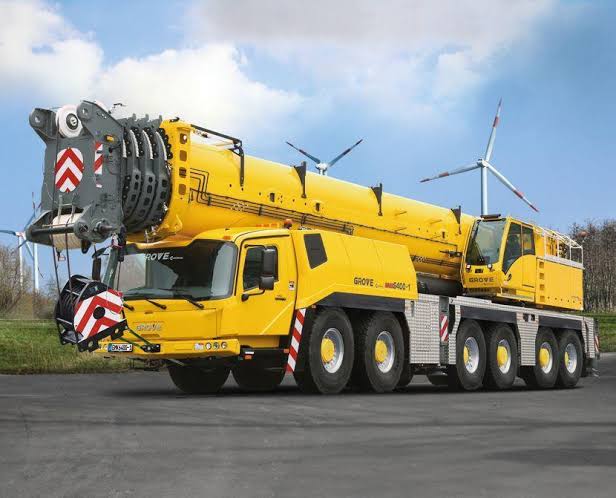

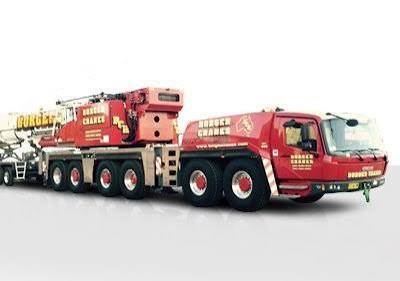

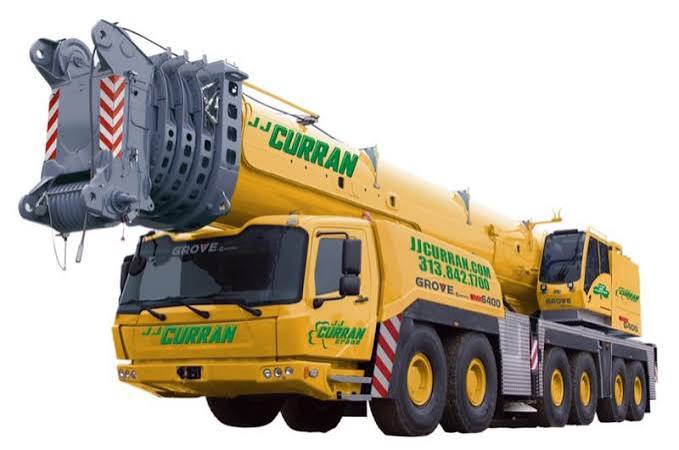

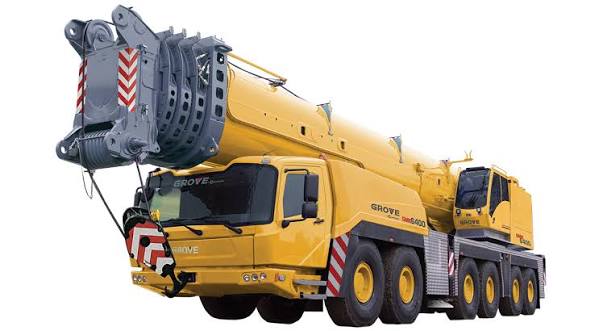

Grove GMK6400 All Terrain Crane
1 / 5
Image 1 of 5
Image: wpcrane.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight158,733 lb
Tire Size445/95 R25
Operating Voltage24 V
Number of Axels7
Alternator Supplied Amperage100 A
Upper Structure Fuel Capacity171.8 gal

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width119 in
Transport Height158 in
Transport Length681 in
Width w/ Outriggers Extended335 in
Upper Structure Tail Swing Radius134 in
Carrier Length620 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeZF AS Tronic

Boom

Boom specifications
Max Lift Capacity900,000 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib2,508 in
Min Height @ Max Raise Angle648 in
Max Elevating Angle82 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power543.2 hp
Max Torque1,918 lb-ft
Torque Measured @1,300 rpm
MakeGrove
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
