Terex

AC 200-1

All Terrain Crane

Gross Power
530.0 hp
Max Speed - Forward
52.9 mph
Transport Width
119 in
All all terrain cranes

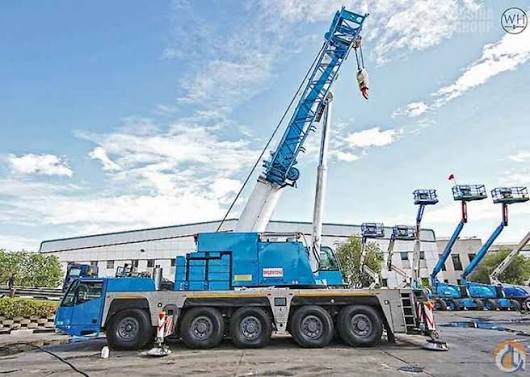

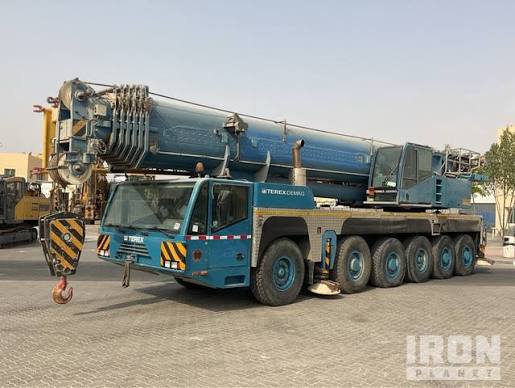

Terex AC 200-1 All Terrain Crane
1 / 5
Image 1 of 5
Image: machineryline.ng

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight132,277 lb
Tire Size14.00R25
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Number of Axels5

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height158 in
Transport Length580 in
Width w/ Outriggers Extended324 in
Upper Structure Tail Swing Radius190 in
Carrier Length497 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeZF AS-Tronic automated transmission
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib2,796 in
Min Height @ Max Raise Angle630 in
Max Elevating Angle82 °
Swing Speed1 rpm
Min Working Radius119 in
Max Working Radius2,442 in
Height3,960 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power530.0 hp
Max Torque1,770 lb-ft
Torque Measured @1,300 rpm
MakeTerex
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power231.0 hp
MakeTerex
Max Torque597 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
