Grove

GMK3050-1

All Terrain Crane

Gross Power
355.4 hp
Max Lift Capacity
138,891 lb
Max Speed - Forward
49.8 mph
Transport Width
101 in
All all terrain cranes

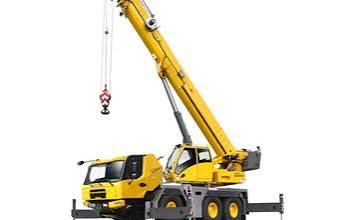

Grove GMK3050-1 All Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight79,366 lb
Tire Size14.00 R25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels3
Alternator Supplied Amperage100 A

Dimensions

Dimensions specifications
Transport Width101 in
Transport Height145 in
Transport Length430 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius131 in
Carrier Length342 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Max Speed - Reverse4.4 mph
Transmission TypeZF-AS TRONIC automatic
Number of Forward Gears12
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity138,891 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib1,496 in
Min Height @ Max Raise Angle378 in
Max Elevating Angle82 °
Swing Speed3 rpm
Min Working Radius119 in
Max Working Radius1,339 in
Height2,204 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power355.4 hp
Max Torque1,364 lb-ft
Torque Measured @1,300 rpm
MakeGrove
Power Measured @1,800 rpm
