Grove

RT38

Rough Terrain Crane

Operating Weight
22,000 lb
Max Lift Capacity
15,000 lb
Max Speed - Forward
25.0 mph
Gross Power
124.0 hp
All rough terrain cranes

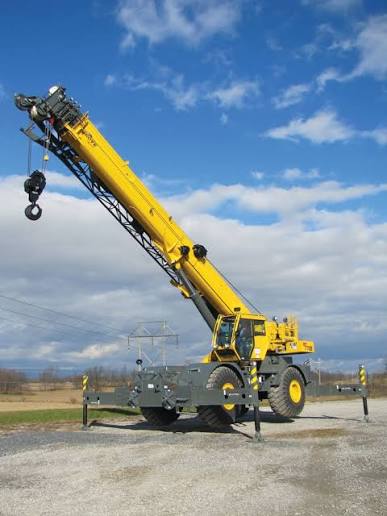

Grove RT38 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: jjcurran.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,000 lb
Tire Size13.00X24-10ply
Operating Voltage12 V

Engine

Engine specifications
Engine Model240
Power Measured @2,800 rpm
Gross Power124.0 hp
Torque Measured @2,400 rpm
Max Torque235 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity1,589.7 gal/min
Operating pressure2,250 psi

Dimensions

Dimensions specifications
Wheelbase9 in
Transport Width96 in
Transport Height117 in
Width w/ Outriggers Extended145 in
Carrier/Base Length197 in

Transmission

Transmission specifications
Max Speed - Forward25.0 mph
Number of Forward Gears4
Number of Reverse Gears2
Transmission TypeAllison automatic powershift

Boom

Boom specifications
Max Lift Capacity15,000 lb
Max Height @ Max Raise Angle - no jib312 in
Min Height @ Max Raise Angle216 in
Max Elevating Angle75 °
Number of Sections2
Swing Speed5 rpm
Min Operating Radius120 in
Max Operating Radius240 in

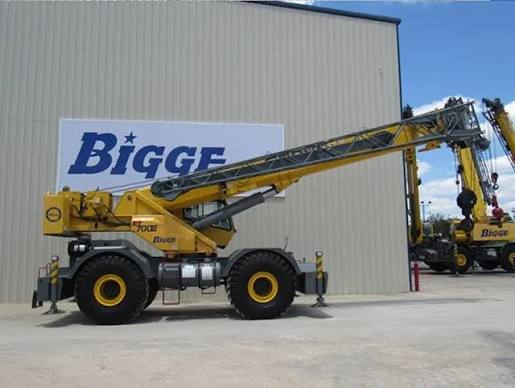

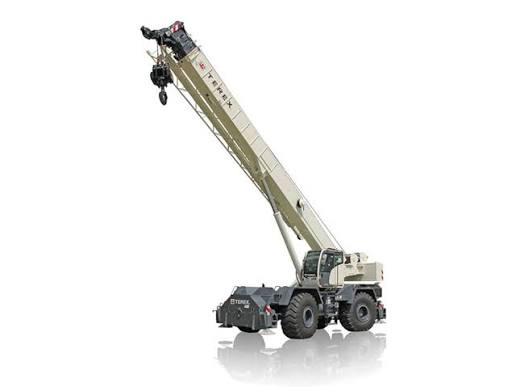

Comparable machines
