Terex

RT 780-1

Rough Terrain Crane

Gross Power
260.0 hp
All rough terrain cranes

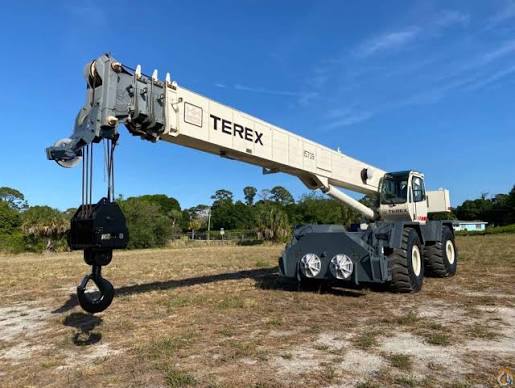

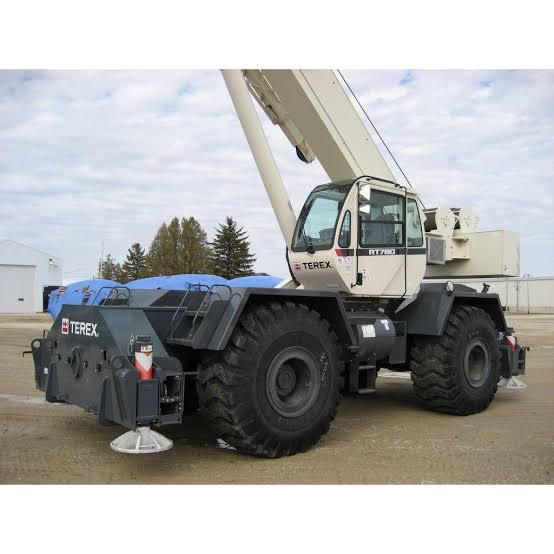

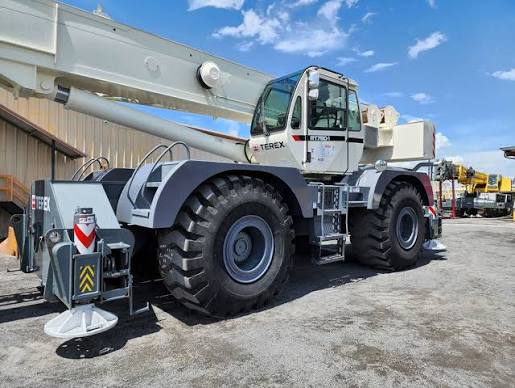

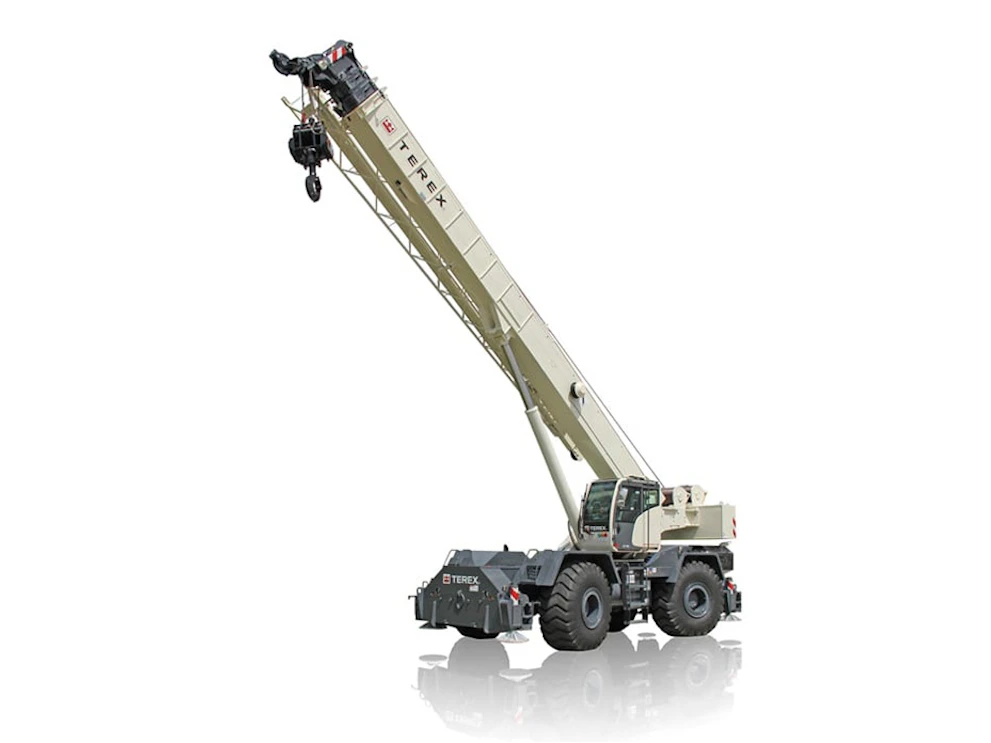

Terex RT 780-1 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity80.0 gal
Tire Size29.5 X 25-28PR
Hydraulic System Fluid Capacity178.0 gal

Engine

Engine specifications
Engine ModelCummins QSB6.7
Power Measured @2,500 rpm
Gross Power260.0 hp
Number of Cylinders6
AspirationTurbocharger with intercooler
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Fuel TypeUltra Low Sulfur Diesel
Emissions CertificationTier 4

Weights

Weights specifications
Counterweight15,200 lb

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase13 in
Transport Width104 in
Transport Height157 in
Transport Length576 in
Width w/ Outriggers Extended137 in
Upper Structure Tail Swing Radius158 in
Carrier/Base Length325 in

Transmission

Transmission specifications
Max Speed25.0 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypePowershift transmission with torque converter

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,512 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed2 rpm
