Grove

RT770E

Rough Terrain Crane

Max Lift Capacity
14,365 lb
Gross Power
240.1 hp
All rough terrain cranes

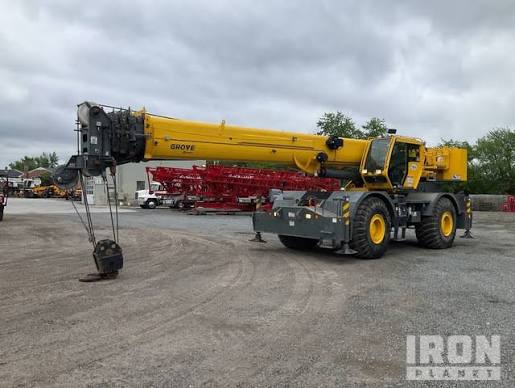

Grove RT770E Rough Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Tire Size23.5 x 25 ââ?¬â?? 24 Bias ply rating
Operating Voltage12 V

Engine

Engine specifications
Engine ModelQSB6
Displacement427 in³
Power Measured @2,500 rpm
Gross Power240.1 hp
AspirationTurbo-charged
Torque Measured @1,500 rpm
Max Torque728 lb-ft
Engine MakeCummins
Emissions CertificationTier 4F
Cylinders6

Weights

Weights specifications
Counterweight14,365 lb

Hydraulic System

Hydraulic System specifications
Max operating pressure4,000 psi

Dimensions

Dimensions specifications
Ground Clearance83 in
Wheelbase160 in
Transport Width144 in
Transport Height220 in
Transport Length317 in
Width w/ Outriggers Extended209 in
Upper Structure Tail Swing Radius536 in
Carrier/Base Length135,119 in

Transmission

Transmission specifications
Max Speed37.0 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeRangeshift

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)70 (64) — Starting 2017 Model Year
Lift Height Ft. (m)138 (42) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity14,365 lb
Max Height @ Max Raise Angle - no jib1,656 in
Min Height @ Max Raise Angle432 in
Max Elevating Angle78 °
Number of Sections4
Min Operating Radius240 in
Max Operating Radius2,160 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed3 rpm
