Link Belt

RTC-8050

Rough Terrain Crane

Operating Weight
13,000 lb
Max Speed - Forward
20.3 mph
Gross Power
210.0 hp
All rough terrain cranes

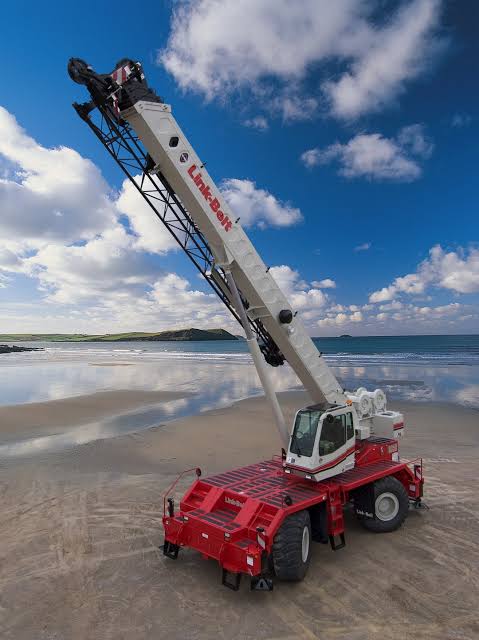

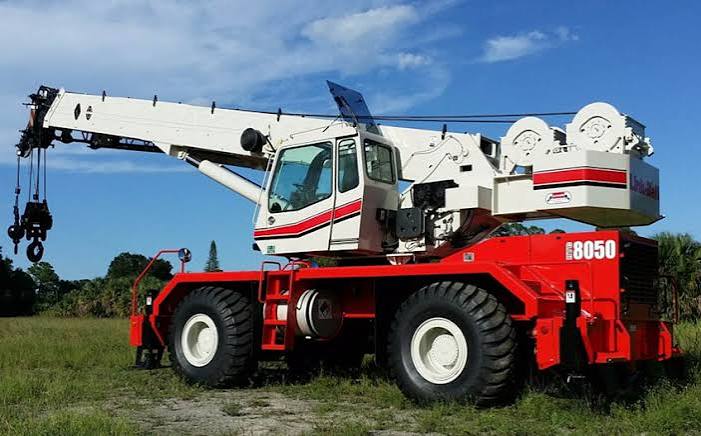

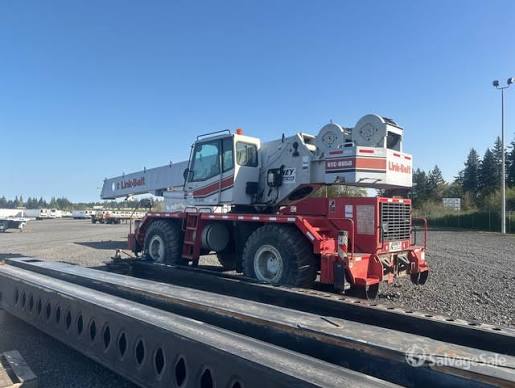

Link Belt RTC-8050 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,000 lb
Fuel Capacity100.0 gal
Tire Size29.5 X 25
Operating Voltage12 V
Hydraulic System Fluid Capacity170.0 gal
Alternator Supplied Amperage130 A

Engine

Engine specifications
Engine Model6CT8.3
Displacement504 in³
Power Measured @2,200 rpm
Gross Power210.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque567 lb-ft
Engine MakeCummins
Stroke5 in
Bore5 in
Crankcase capacity5.9 gal

Dimensions

Dimensions specifications
Wheelbase151 in
Transport Width131 in
Transport Height155 in
Transport Length559 in
Width w/ Outriggers Extended289 in
Upper Structure Tail Swing Radius139 in
Carrier/Base Length324,804 in

Transmission

Transmission specifications
Max Speed - Forward20.3 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypePower shift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,321 in
Min Height @ Max Raise Angle426 in
Max Elevating Angle78 °
Swing Speed3 rpm
