Link Belt

RTC-8065

Rough Terrain Crane

Operating Weight
12,000 lb
Max Speed - Forward
19.6 mph
Gross Power
270.0 hp
All rough terrain cranes

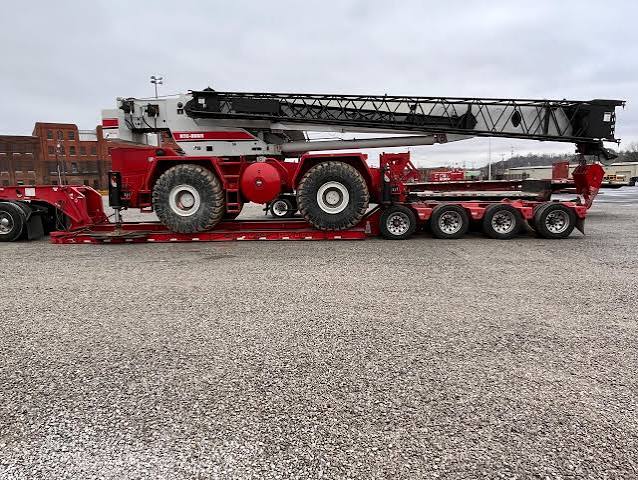

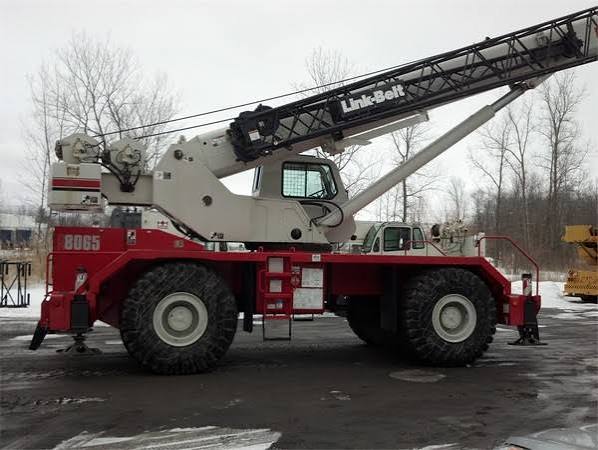

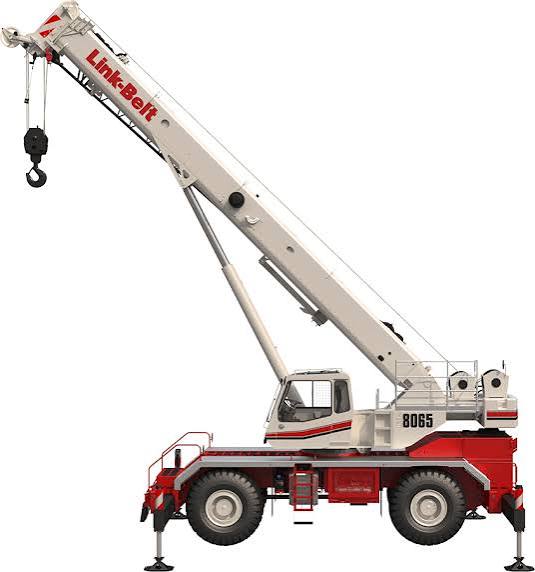

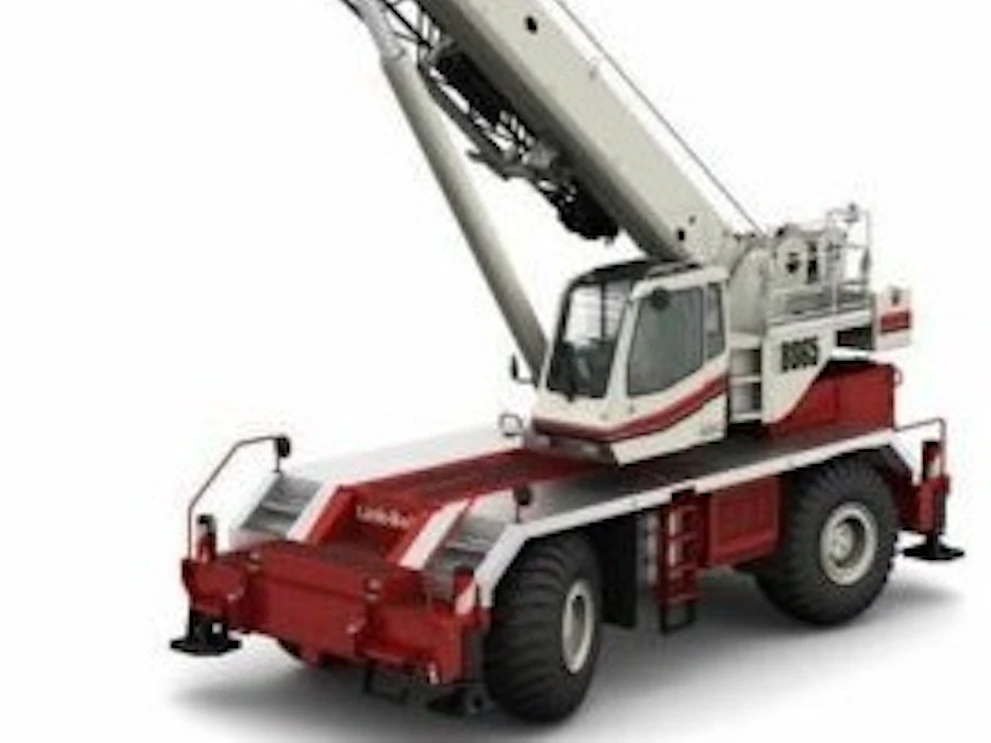

Link Belt RTC-8065 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,000 lb
Fuel Capacity95.0 gal
Tire Size29.5 x 25
Operating Voltage12 V
Hydraulic System Fluid Capacity170.0 gal
Alternator Supplied Amperage130 A

Engine

Engine specifications
Engine Model3126B
Displacement439 in³
Power Measured @2,200 rpm
Gross Power270.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque646 lb-ft
Engine MakeCaterpillar
Stroke5 in
Bore4 in
Emissions complianceTier 4F / Stage IV
Crankcase capacity7.5 gal

Dimensions

Dimensions specifications
Wheelbase151 in
Transport Width121 in
Transport Height155 in
Transport Length550 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius139 in
Carrier/Base Length328 in

Transmission

Transmission specifications
Max Speed - Forward19.6 mph
Max Speed - Reverse19.6 mph
Number of Forward Gears6
Number of Reverse Gears6

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,380 in
Min Height @ Max Raise Angle456 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed2 rpm
Height1,380 in
