Grove

RT530E-2

Rough Terrain Crane

Operating Weight
56,995 lb
Max Lift Capacity
60,000 lb
Max Speed - Forward
24.9 mph
Gross Power
163.7 hp
All rough terrain cranes

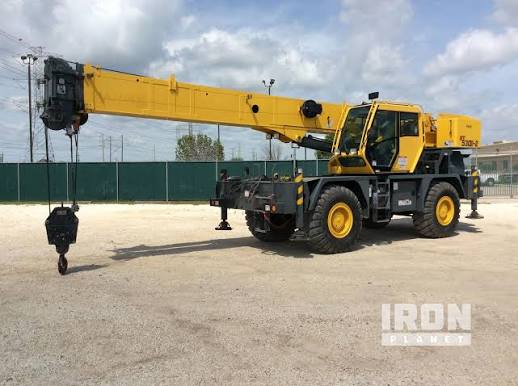

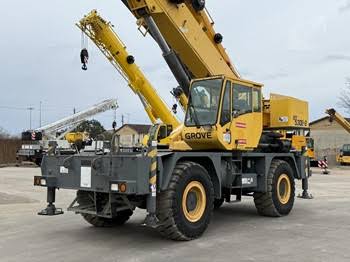

Grove RT530E-2 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,995 lb
Fuel Capacity58.2 gal
Tire Size20.5x25 -24bias
Operating Voltage12 V
Hydraulic System Fluid Capacity83.6 gal

Engine

Engine specifications
Engine ModelQSB 6.7L
Displacement409 in³
Power Measured @2,500 rpm
Gross Power163.7 hp
Torque Measured @1,500 rpm
Max Torque540 lb-ft
Emissions CertificationTier4F

Weights

Weights specifications
Counterweight8,415 lb

Hydraulic System

Hydraulic System specifications
Max operating pressure4,000 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase12 in
Transport Width103 in
Transport Height128 in
Transport Length431 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius150 in
Carrier/Base Length280 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Max Speed - Reverse24.9 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeRange-shift

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)30 (27) Starting 2017 Model Year
Lift Height Ft. (m)95 (29) Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity60,000 lb
Max Height @ Max Raise Angle - no jib1,140 in
Min Height @ Max Raise Angle348 in
Max Elevating Angle76 °
Number of Sections4
Swing Speed2 rpm
Min Operating Radius120 in
Max Operating Radius1,020 in
Height1,752 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed2 rpm
