Grove

RT755

Rough Terrain Crane

Max Lift Capacity
110,000 lb
All rough terrain cranes

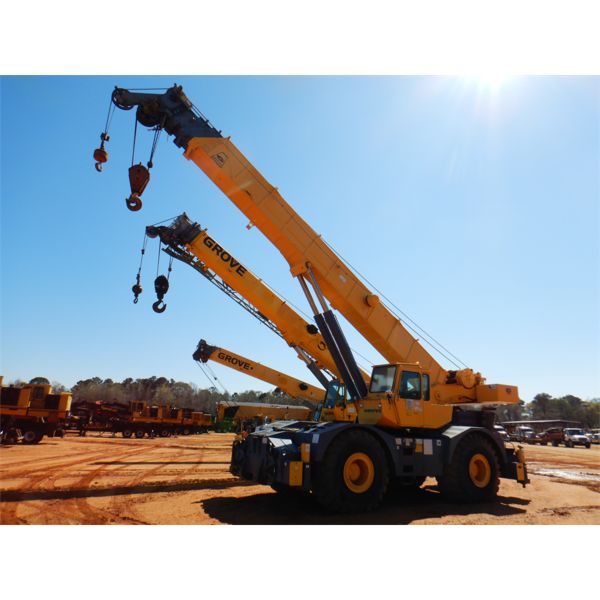

Grove RT755 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity60.0 gal
Tire Size26.5X25
Operating Voltage12 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Model6V-53N
Displacement318 in³
Power Measured @2,500 rpm
Net Power170.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque392 lb-ft
Engine MakeDetroit Diesel
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase13 in
Transport Width128 in
Transport Height151 in
Transport Length520 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius170 in
Carrier/Base Length311 in

Transmission

Transmission specifications
Number of Forward Gears6
Number of Reverse Gears6

Boom

Boom specifications
Max Lift Capacity110,000 lb
Max Height @ Max Raise Angle - no jib1,392 in
Min Height @ Max Raise Angle408 in
Number of Sections3
