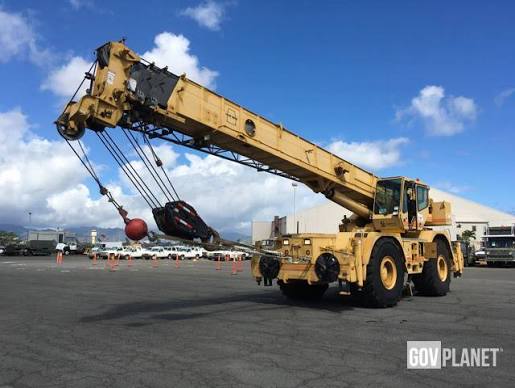

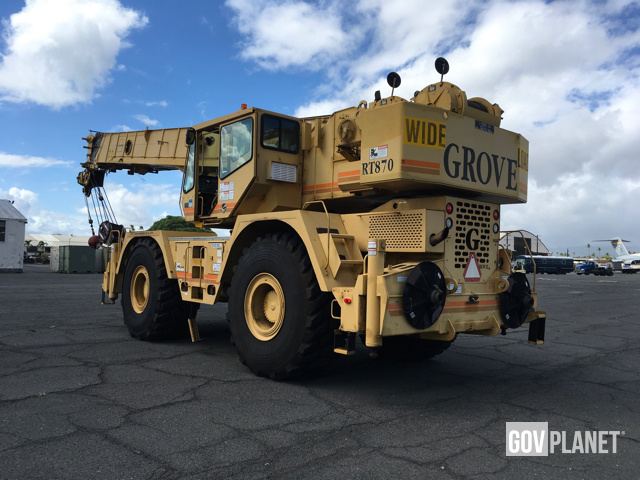

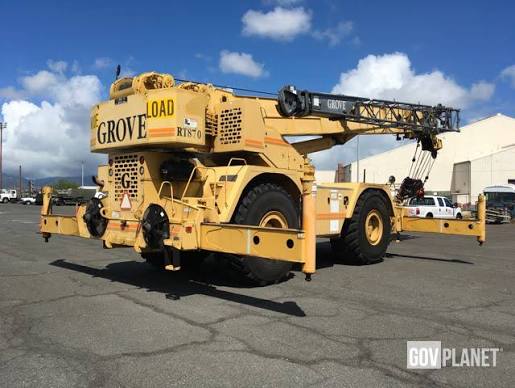

Grove
RT870
- Operating Weight
- 107,039 lb
- Max Lift Capacity
- 140,000 lb
- Max Speed - Forward
- 24.9 mph
- Gross Power
- 256.2 hp
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 107,039 lb |
|---|---|
| Fuel Capacity | 80.1 gal |
| Tire Size | 33.25X29-32PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 200.0 gal |
Engine
| Engine Model | 6CTA 8.3L |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 256.2 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 650 lb-ft |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Wheelbase | 13 in |
| Transport Width | 132 in |
| Transport Height | 157 in |
| Transport Length | 565 in |
| Width w/ Outriggers Extended | 319 in |
| Upper Structure Tail Swing Radius | 169 in |
| Carrier/Base Length | 340 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | full powershift |
Boom
| Max Lift Capacity | 140,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,500 in |
| Min Height @ Max Raise Angle | 480 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,320 in |
