Grove

RT75S

Rough Terrain Crane

Operating Weight
67,250 lb
Max Lift Capacity
30,000 lb
Max Speed - Forward
21.8 mph
All rough terrain cranes

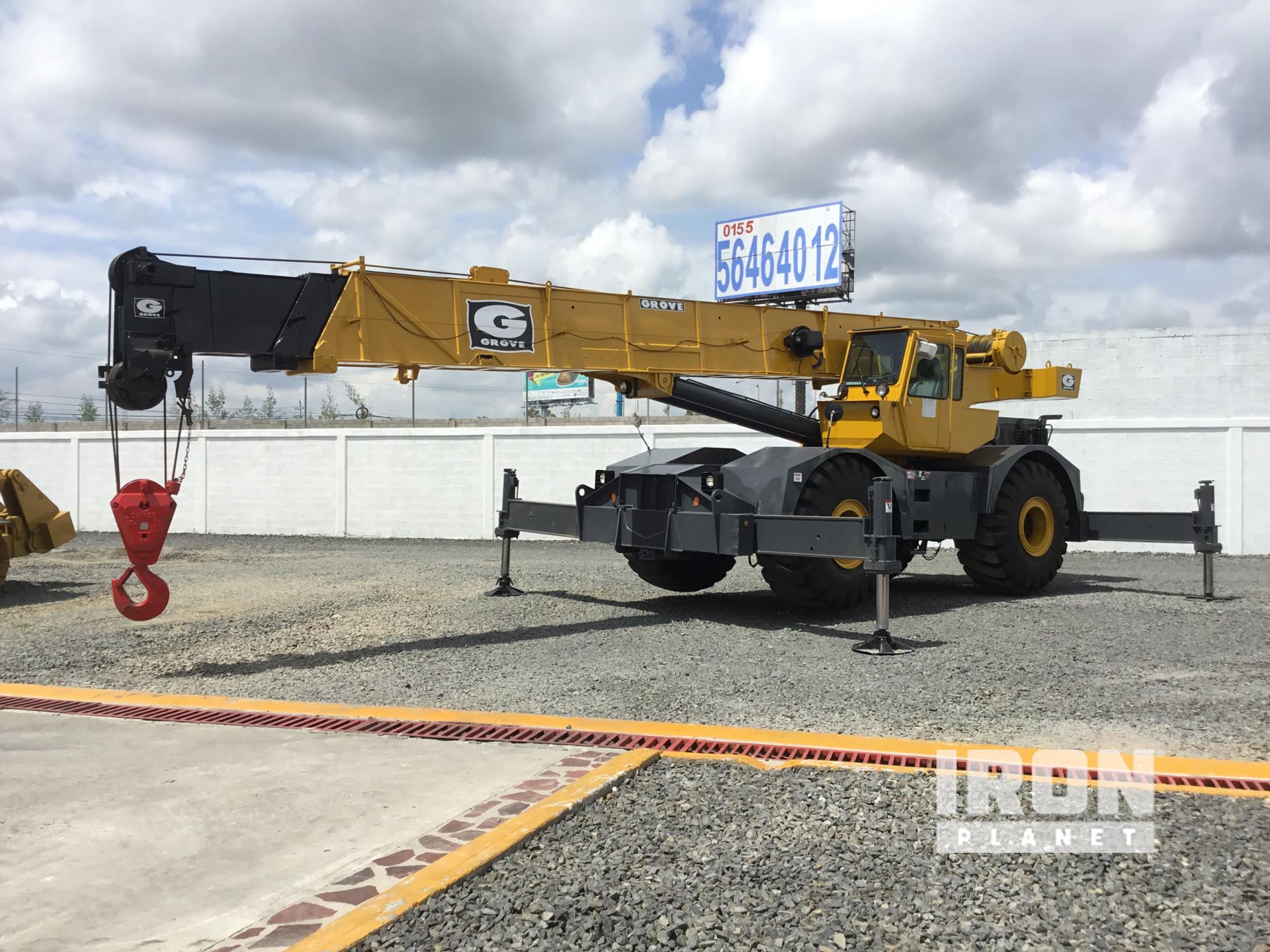

Grove RT75S Rough Terrain Crane
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight67,250 lb
Fuel Capacity60.0 gal
Tire Size21.00X25-24ply
Operating Voltage24 V
Hydraulic System Fluid Capacity133.0 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine Model6V-53N
Displacement318 in³
Power Measured @2,500 rpm
Net Power173.0 hp
Torque Measured @1,500 rpm
Max Torque396 lb-ft
Air cleanerFull Flow

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase13 in
Transport Width124 in
Transport Height143 in
Transport Length494 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius162 in
Carrier/Base Length435 in

Transmission

Transmission specifications
Max Speed - Forward21.8 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity30,000 lb
Max Height @ Max Raise Angle - no jib1,344 in
Min Height @ Max Raise Angle396 in
Max Elevating Angle76 °
Number of Sections4
Swing Speed3 rpm
Min Operating Radius36 in
Max Operating Radius312 in
