Grove

RT740B

Rough Terrain Crane

Operating Weight
65,411 lb
Max Speed - Forward
18.7 mph
Gross Power
173.0 hp
All rough terrain cranes

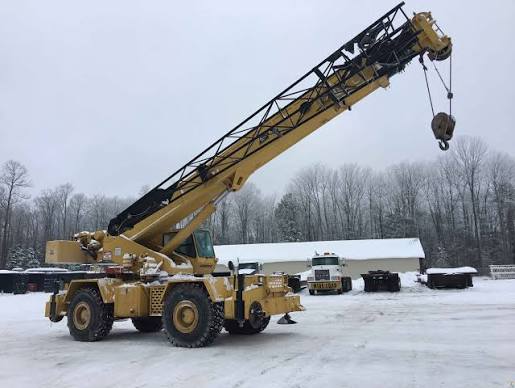

Grove RT740B Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,411 lb
Fuel Capacity60.0 gal
Tire Size18.00 X 25 - 32 PR
Operating Voltage24 V
Hydraulic System Fluid Capacity99.9 gal

Engine

Engine specifications
Engine ModelB5.9 173 C31
Power Measured @2,500 rpm
Gross Power173.0 hp
Torque Measured @1,500 rpm
Max Torque487 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase150 in
Transport Width119 in
Transport Height135 in
Transport Length504 in
Width w/ Outriggers Extended288 in
Upper Structure Tail Swing Radius162 in
Carrier/Base Length311,497 in

Transmission

Transmission specifications
Max Speed - Forward18.7 mph
Number of Forward Gears6
Number of Reverse Gears3
Transmission TypeFull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,320 in
Min Height @ Max Raise Angle418 in
Max Elevating Angle78 °
Number of Sections4
