Grove
Genie

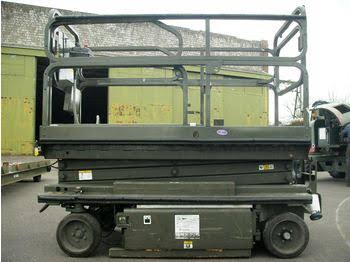

GS-1530
Aerial Lift
22 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Engine
| System Voltage | 24 V |
|---|---|
| Battery Amp Hours | 250 |
| Number of Batteries | 4 |
| Charger Amps | 25 |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 73 in |
| Overall Length | 8 in |
| Overall Width | 47 in |
| Turning Radius | 134 in |
| Height w/ Rails | 93 in |
| Height w/o Rails | 73 in |
Performance
| Operating Weight | 3,880 lb |
|---|---|
| Max Speed | 2.5 mph |
| Tire Size | 16x5 |
| Tire Fill/Type | Solid |
Platform
| Max Platform Height | 241 in |
|---|---|
| Max Platform Weight Capacity | 1,400 lb |
| Platform Inner Length | 92 in |
| Platform Inner Width | 42 in |
| Max Working Height | 312 in |
| Lift Time | 32.0 s |
| Deck Extension | 36 in |
| Lower Time | 34.0 s |
| Height of Rails | 43 in |
