Grove

SM3146E

Aerial Lift

Max Platform Height
300 in
Overall Length
8 in
Overall Width
47 in
All aerial lifts

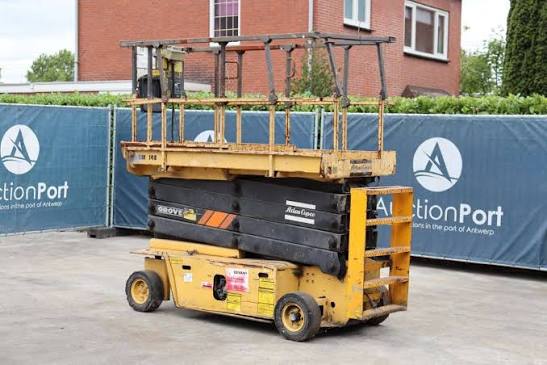

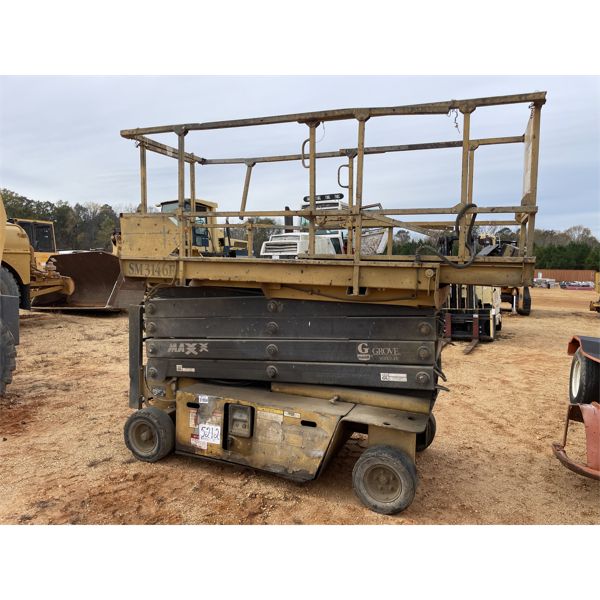

Grove SM3146E Aerial Lift
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

24 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours250
Number of Batteries4
Charger Amps25

Dimensions

Dimensions specifications
Ground Clearance4 in
Wheelbase73 in
Overall Length8 in
Overall Width47 in
Turning Radius134 in
Height w/ Rails98 in
Height w/o Rails78 in

Performance

Performance specifications
Operating Weight4,222 lb
Max Speed2.5 mph
Tire Size16x5
Tire Fill/TypeSolid

Platform

Platform specifications
Max Platform Height300 in
Max Platform Weight Capacity849 lb
Platform Inner Length92 in
Platform Inner Width42 in
Max Working Height374 in
Lift Time32.0 s
Deck Extension36 in
Lower Time34.0 s
Height of Rails43 in
