Grove

TD180

Truck Crane

Operating Weight
49,000 lb
Max Lift Capacity
36,000 lb
Max Speed - Forward
49.0 mph
Displacement
318 in³
All truck cranes

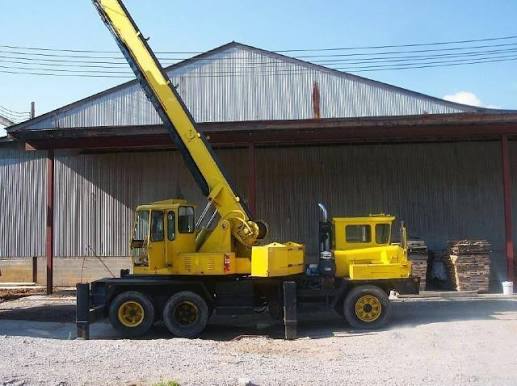

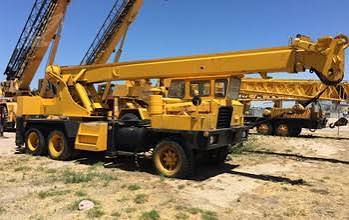

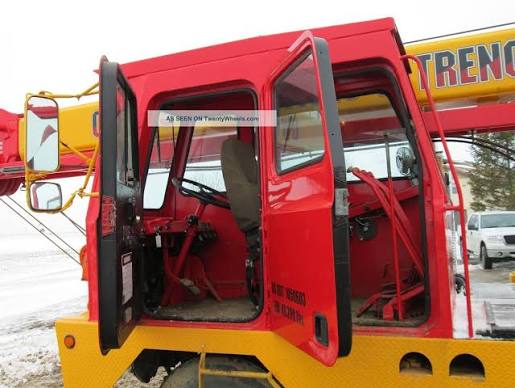

Grove TD180 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,000 lb
Operating Voltage12 V
Tire Sizefront 15x22.5 rear 10.00x20
Carrier Fuel Capacity40.0 gal
Upper Structure Hydraulic System Fluid Capacity73.0 gal
Number of Axels3
Alternator Supplied Amperage60 A

Dimensions

Dimensions specifications
Ground Clearance16 in
Transport Width96 in
Transport Height132 in
Transport Length403 in
Width w/ Outriggers Extended211 in
Upper Structure Tail Swing Radius108 in
Carrier Length296 in

Transmission

Transmission specifications
Max Speed - Forward49.0 mph
Number of Forward Gears5
Number of Reverse Gears1
Transmission TypeFuller

Boom

Boom specifications
Max Lift Capacity36,000 lb
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle264 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius798 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power178.0 hp
Displacement318 in³
Power Measured @2,600 rpm
MakeGrove
Max Torque440 lb-ft
Torque Measured @1,400 rpm
