Grove

TMS300LP

Truck Crane

Operating Weight
60,984 lb
Max Lift Capacity
70,000 lb
Max Speed - Forward
51.2 mph
Displacement
426 in³
All truck cranes

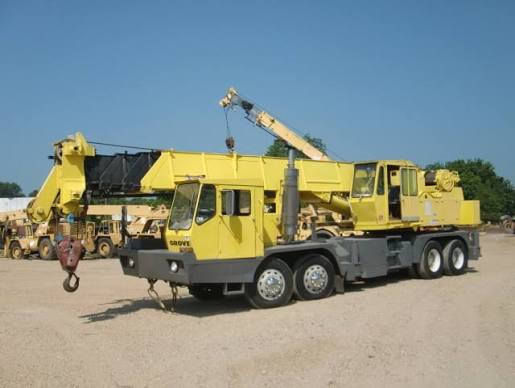

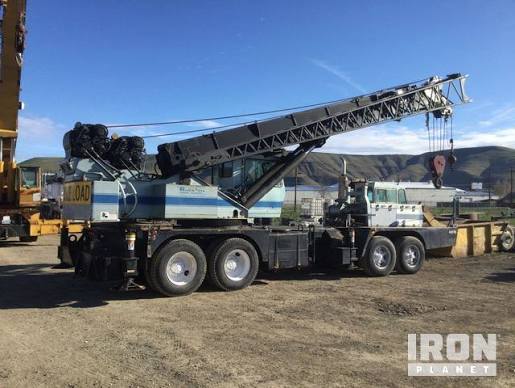

Grove TMS300LP Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,984 lb
Operating Voltage12 V
Tire Sizefront 12.00x20 rear 11.00x20
Carrier Fuel Capacity90.0 gal
Upper Structure Hydraulic System Fluid Capacity127.0 gal
Number of Axels4
Alternator Supplied Amperage62 A

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase224 in
Transport Width97 in
Transport Height128 in
Transport Length504 in
Width w/ Outriggers Extended217 in
Upper Structure Tail Swing Radius126 in
Carrier Length422 in

Transmission

Transmission specifications
Max Speed - Forward51.2 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller Roadranger RTO613

Boom

Boom specifications
Max Lift Capacity70,000 lb
Max Height @ Max Raise Angle - no jib1,632 in
Min Height @ Max Raise Angle408 in
Max Elevating Angle78 °
Number of Sections5
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius1,200 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power213.0 hp
Displacement426 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque582 lb-ft
Torque Measured @1,400 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
