Grove

TMS300B

Truck Crane

Operating Weight
72,627 lb
Max Lift Capacity
82,673 lb
Max Speed - Forward
51.5 mph
Displacement
426 in³
All truck cranes

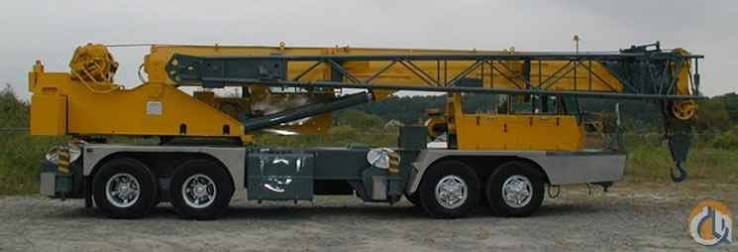

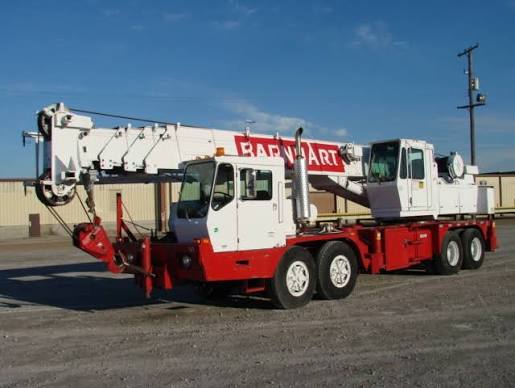

Grove TMS300B Truck Crane
1 / 5
Image 1 of 5
Image: boomandbucket.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,627 lb
Operating Voltage24 V
Tire Sizefront 15.00x22.5-16PR rear 11.00x20-14PR
Carrier Fuel Capacity90.0 gal
Upper Structure Hydraulic System Fluid Capacity127.0 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width96 in
Transport Height131 in
Transport Length527 in
Width w/ Outriggers Extended246 in
Upper Structure Tail Swing Radius130 in
Carrier Length437 in

Transmission

Transmission specifications
Max Speed - Forward51.5 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeManual

Boom

Boom specifications
Max Lift Capacity82,673 lb
Max Height @ Max Raise Angle - no jib1,248 in
Min Height @ Max Raise Angle408 in
Max Elevating Angle76 °
Number of Sections4
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius1,200 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power230.7 hp
Displacement426 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque611 lb-ft
Torque Measured @1,600 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
