Grove

TD522

Truck Crane

Operating Weight
46,879 lb
Max Lift Capacity
44,000 lb
Max Speed - Forward
56.1 mph
Displacement
555 in³
All truck cranes

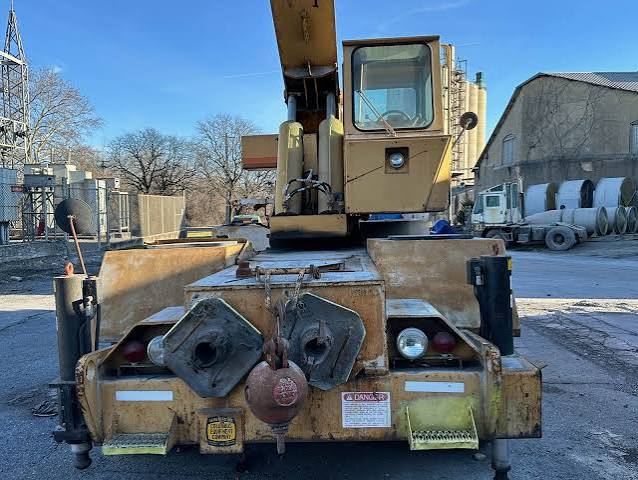

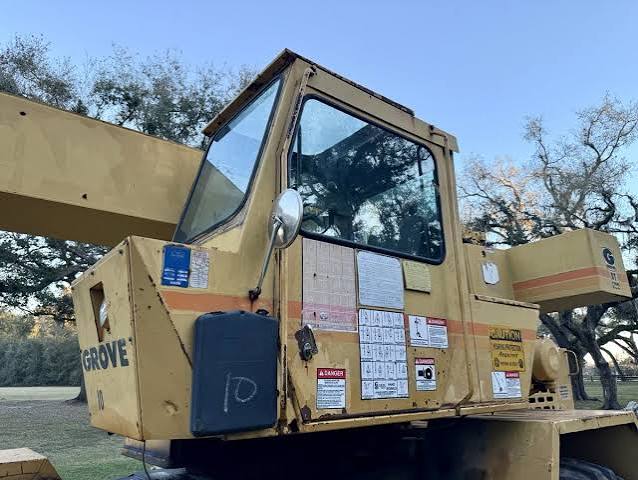

Grove TD522 Truck Crane
1 / 5
Image 1 of 5
Image: allsurplus.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,879 lb
Operating Voltage24 V
Tire Sizefront 15x22.5 rear 10.00x20-12PR
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity88.0 gal
Number of Axels3
Alternator Supplied Amperage90 A
Carrier Cooling System Fluid Capacity10.1 gal

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width96 in
Transport Height142 in
Transport Length428 in
Width w/ Outriggers Extended228 in
Upper Structure Tail Swing Radius118 in
Carrier Length332 in

Transmission

Transmission specifications
Max Speed - Forward56.1 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller Roadranger RT6613

Boom

Boom specifications
Max Lift Capacity44,000 lb
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle336 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius780 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power182.5 hp
Gross Power225.0 hp
Displacement555 in³
Power Measured @3,000 rpm
MakeGrove
Max Torque361 lb-ft
Torque Measured @1,900 rpm
Number of cylinders8
