Grove

TM275LP

Truck Crane

Operating Weight
63,894 lb
Max Lift Capacity
60,000 lb
Max Speed - Forward
50.0 mph
Displacement
501 in³
All truck cranes

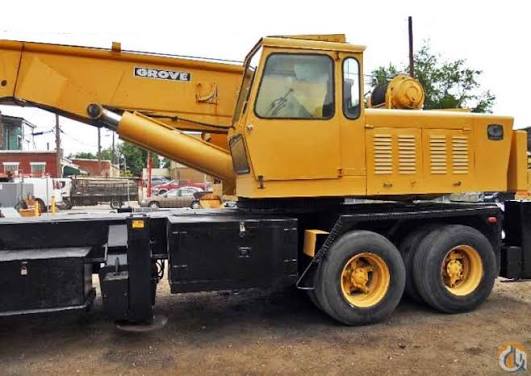

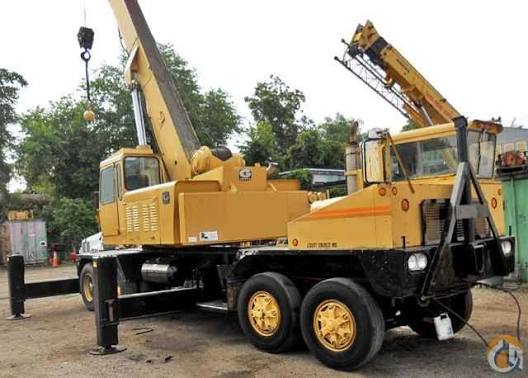

Grove TM275LP Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,894 lb
Operating Voltage12 V
Tire Size11.00x20
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity146.0 gal
Number of Axels4
Alternator Supplied Amperage37 A
Upper Structure Fuel Capacity57.0 gal

Dimensions

Dimensions specifications
Ground Clearance12 in
Transport Width97 in
Transport Height143 in
Transport Length475 in
Width w/ Outriggers Extended192 in
Upper Structure Tail Swing Radius119 in
Carrier Length388 in

Transmission

Transmission specifications
Max Speed - Forward50.0 mph
Number of Forward Gears5
Number of Reverse Gears1
Transmission TypeFuller 5CW65

Boom

Boom specifications
Max Lift Capacity60,000 lb
Max Height @ Max Raise Angle - no jib960 in
Min Height @ Max Raise Angle384 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Working Radius144 in
Max Working Radius900 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power214.8 hp
Displacement501 in³
Power Measured @3,000 rpm
MakeGrove
Max Torque451 lb-ft
Torque Measured @1,600 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power171.0 hp
MakeGrove
Power Measured @2,800 rpm
Torque Measured @2,100 rpm
Max Torque346 lb-ft
Number of cylinders8
