Grove

TMS528B

Truck Crane

Operating Weight
46,644 lb
Max Lift Capacity
56,000 lb
Max Speed - Forward
52.0 mph
Displacement
500 in³
All truck cranes

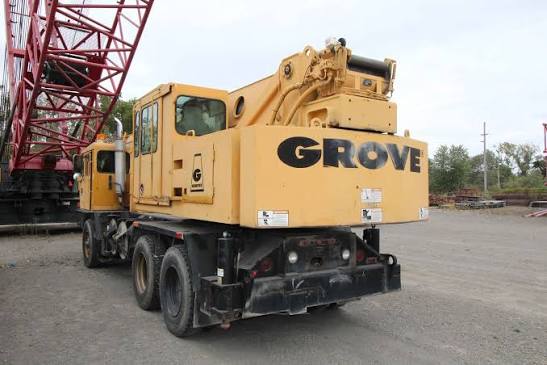

Grove TMS528B Truck Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,644 lb
Operating Voltage24 V
Tire Sizefront 15.00x22.5-16PR rear9.00x20-10PR
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity88.0 gal
Number of Axels3

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width96 in
Transport Height133 in
Transport Length446 in
Width w/ Outriggers Extended228 in
Upper Structure Tail Swing Radius138 in
Carrier Length332 in

Transmission

Transmission specifications
Max Speed - Forward52.0 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeManual

Boom

Boom specifications
Max Lift Capacity56,000 lb
Max Height @ Max Raise Angle - no jib1,032 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius840 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power205.2 hp
Displacement500 in³
Power Measured @2,800 rpm
MakeGrove
Max Torque383 lb-ft
Torque Measured @1,700 rpm
Number of cylinders8
