Grove

TMS250A

Truck Crane

Operating Weight
48,728 lb
Max Lift Capacity
50,000 lb
Max Speed - Forward
65.2 mph
Displacement
504 in³
All truck cranes

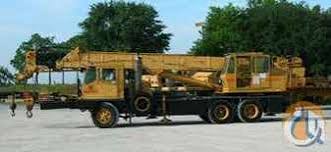

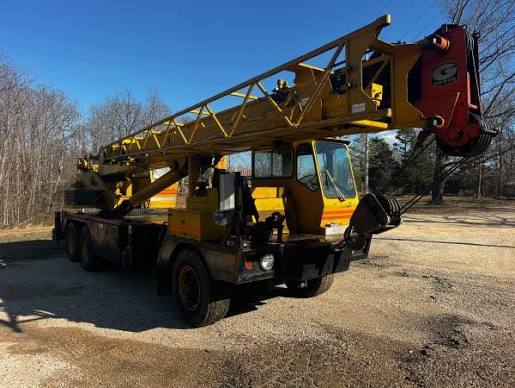

Grove TMS250A Truck Crane
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight48,728 lb
Operating Voltage24 V
Tire Sizefront 15x22.5 rear 9.00x20
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity86.0 gal
Number of Axels3
Alternator Supplied Amperage90 A

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width96 in
Transport Height132 in
Transport Length478 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius138 in
Carrier Length384 in

Transmission

Transmission specifications
Max Speed - Forward65.2 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeFuller Roadranger RTO 613

Boom

Boom specifications
Max Lift Capacity50,000 lb
Max Height @ Max Raise Angle - no jib1,272 in
Min Height @ Max Raise Angle384 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power160.0 hp
Displacement504 in³
Power Measured @2,800 rpm
MakeGrove
Max Torque343 lb-ft
Torque Measured @1,900 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
