Grove

TMS250C

Truck Crane

Operating Weight
50,744 lb
Max Lift Capacity
70,000 lb
Max Speed - Forward
52.0 mph
All truck cranes

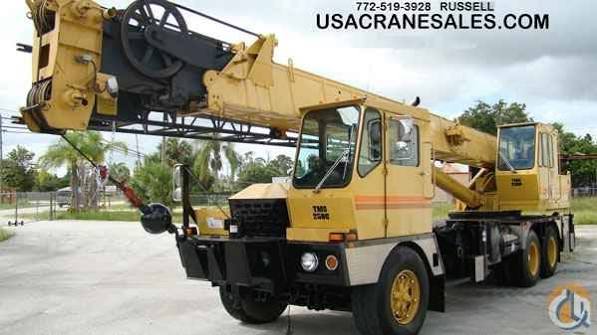

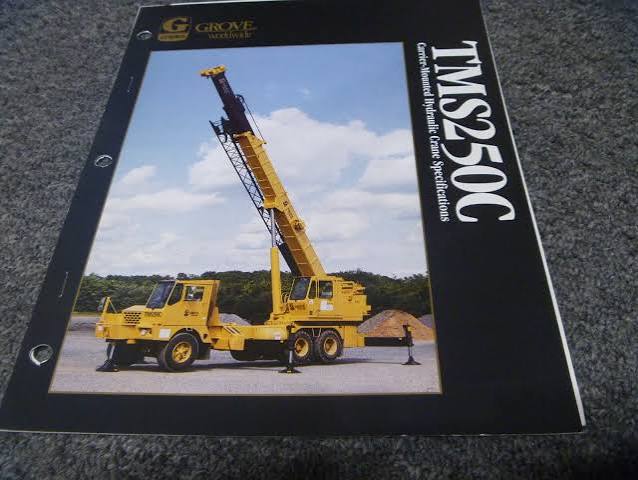

Grove TMS250C Truck Crane
1 / 5
Image 1 of 5
Image: ceicrane.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,744 lb
Operating Voltage24 V
Tire Sizefront 425/65R22.5 rear 9.00x20-12PR
Carrier Fuel Capacity60.0 gal
Upper Structure Hydraulic System Fluid Capacity86.0 gal
Number of Axels3

Dimensions

Dimensions specifications
Ground Clearance16 in
Transport Width96 in
Transport Height145 in
Transport Length486 in
Width w/ Outriggers Extended240 in
Upper Structure Tail Swing Radius138 in
Carrier Length393 in

Transmission

Transmission specifications
Max Speed - Forward52.0 mph
Number of Forward Gears13
Number of Reverse Gears3
Transmission TypeManual

Boom

Boom specifications
Max Lift Capacity70,000 lb
Max Height @ Max Raise Angle - no jib960 in
Min Height @ Max Raise Angle384 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed4 rpm
Min Working Radius120 in
Max Working Radius840 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power210.6 hp
Power Measured @2,400 rpm
MakeGrove
Max Torque605 lb-ft
Torque Measured @1,300 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
