Grove

TMS875C

Truck Crane

Operating Weight
109,200 lb
Max Lift Capacity
150,000 lb
Max Speed - Forward
65.0 mph
Displacement
659 in³
All truck cranes

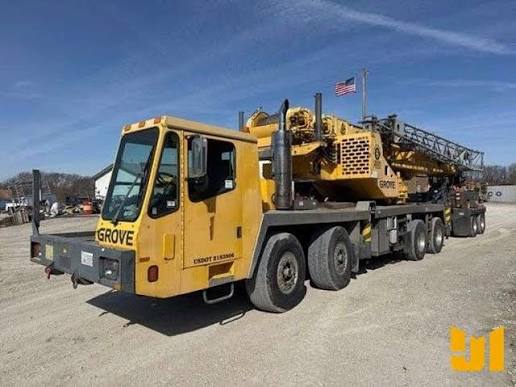

Grove TMS875C Truck Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight109,200 lb
Operating Voltage24 V
Tire SizeFront - 445/65R 22.5 / Rear - 315/80R 22.5
Carrier Fuel Capacity99.4 gal
Upper Structure Hydraulic System Fluid Capacity169.9 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width102 in
Transport Height141 in
Transport Length521 in
Width w/ Outriggers Extended288 in
Upper Structure Tail Swing Radius169 in
Carrier Length439 in

Transmission

Transmission specifications
Max Speed - Forward65.0 mph
Number of Forward Gears11
Number of Reverse Gears3
Transmission TypeRoadranger

Boom

Boom specifications
Max Lift Capacity150,000 lb
Max Height @ Max Raise Angle - no jib1,320 in
Min Height @ Max Raise Angle432 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,200 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power400.0 hp
Displacement659 in³
Power Measured @1,500 rpm
MakeGrove
Max Torque1,450 lb-ft
Torque Measured @1,200 rpm
