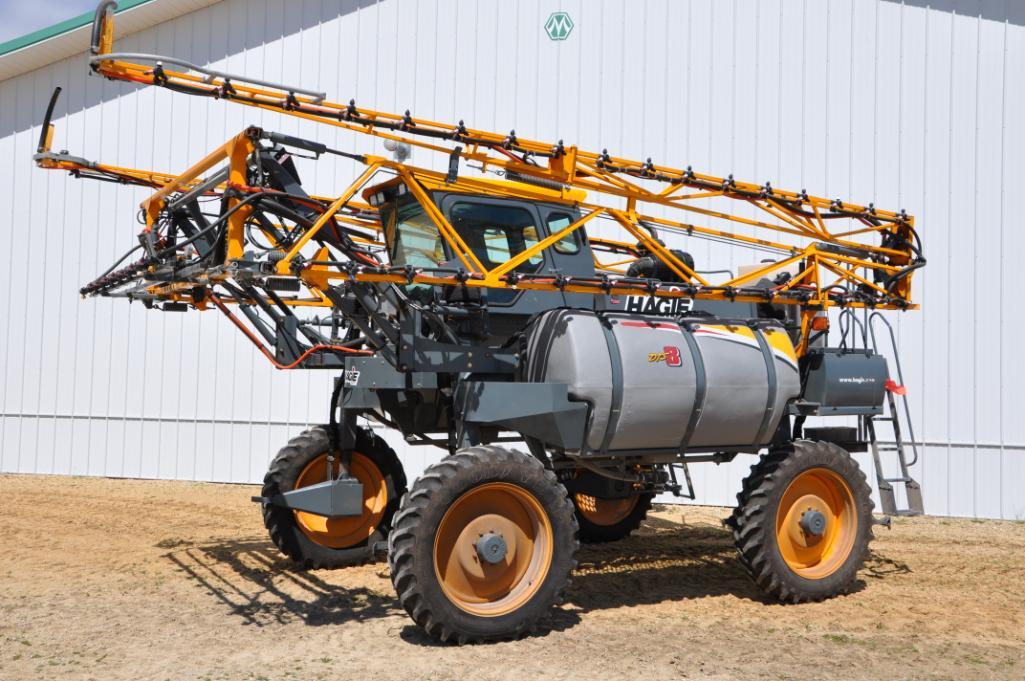

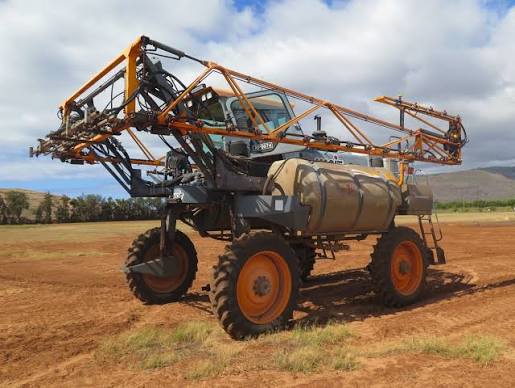

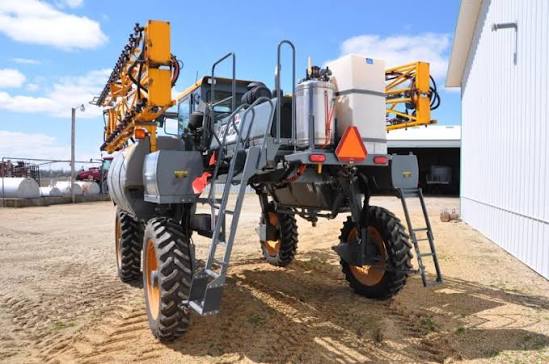

Hagie
Top Air
TA 1600 120ft
Sprayer
7 specifications
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Solution Tank Capacity | 799.9 gal |
|---|---|
| Rinse Tank Capacity | 55.0 gal |
| Fuel Capacity | 80.0 gal |
| Dry Weight - min | 12,270 lb |
| Foam Marker Tank Capacity | 20.0 gal |
Engine
| Engine Model | 6B5.9A |
|---|---|
| Displacement | 360 in³ |
| Gross Power | 152.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 73 in |
|---|---|
| Wheelbase | 120 in |
| Overall Length | 21 in |
| Transport Width | 144 in |
| Transport Height | 134 in |
| Tire Size | 13.6 R28 Goodyear |
Transmission
| Max Speed | 20.0 mph |
|---|---|
| Transmission Type | Single pressure compensated pump with manual displacement control |
Boom
| Max Boom Width | 1,080 in |
|---|---|
| Min Boom Width | 720 in |
| Max Adjustable Height | 104 in |
| Min Adjustable Height | 28 in |
