Hagie

DTS8T

Sprayer

Max Speed
24.0 mph
Solution Tank Capacity
799.9 gal
Displacement
360 in³
Gross Power
152.0 hp
All floaters/sprayers

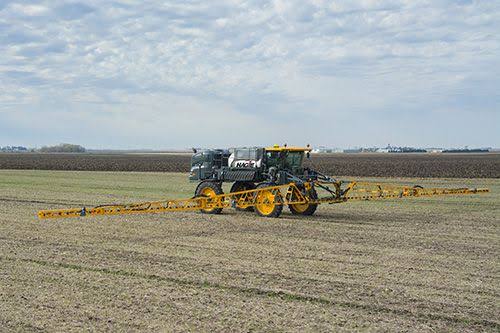

Hagie DTS8T Sprayer
1 / 5
Image 1 of 5
Image: agriculture.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Solution Tank Capacity799.9 gal
Fuel Capacity80.0 gal
Dry Weight - min12,680 lb

Engine

Engine specifications
Engine Model6B5.9A
Displacement360 in³
Gross Power152.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance102 in
Wheelbase120 in
Overall Length22 in
Transport Width144 in
Transport Height149 in
Tire Size13.6 R38 Goodyear

Transmission

Transmission specifications
Max Speed24.0 mph
Transmission TypeTandem pressure compensated pumps with shift on the go
Number of Forward Gears3
Number of Reverse Gears3

Boom

Boom specifications
Max Boom Width1,080 in
Min Boom Width720 in
Max Adjustable Height129 in
Min Adjustable Height52 in
