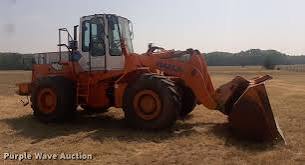

Halla
HA290
- Operating Weight
- 34,260 lb
- Bucket Capacity - heaped
- 3.81 yd³
- Gross Power
- 192.0 hp
- Net Power
- 189.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 34,260 lb |
|---|---|
| Fuel Capacity | 75.6 gal |
| Tire Size | 23.5x25 16PR |
| Hydraulic System Fluid Capacity | 29.6 gal |
| Static Tipping Weight | 28,832 lb |
| Operating Voltage | 24 V |
| Turning Radius | 198 in |
| Engine Oil Fluid Capacity | 5.0 gal |
| Rear Axle Oscillation | 28 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 8.5 gal |
| Rear Axle/Diff Fluid Capacity | 8.5 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Transmission Fluid Capacity | 4.8 gal |
Engine
| Engine Model | 6CT8.3C |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 192.0 hp |
| Net Power | 189.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 66.6 gal/min |
|---|---|
| Raise Time | 6.6 s |
| Lower Time | 2.5 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 2,957 psi |
| Pump Type | closed with pressure & vacuum relief |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 126 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 300 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.81 yd³ |
|---|---|
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 35,273 lb |
| Bucket Width | 118 in |
