Hamm

3410

Smooth Drum Roller

Operating Weight
23,226 lb
Drum Width
84 in
Gross Power
134.2 hp
All smooth drum rollers

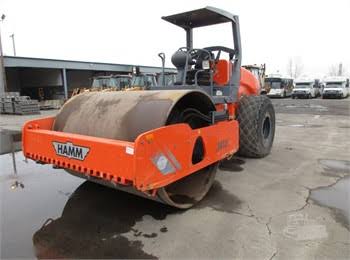

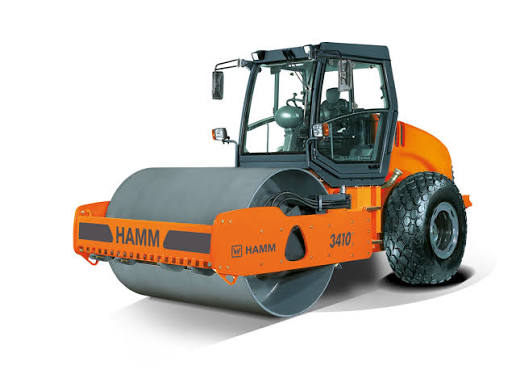

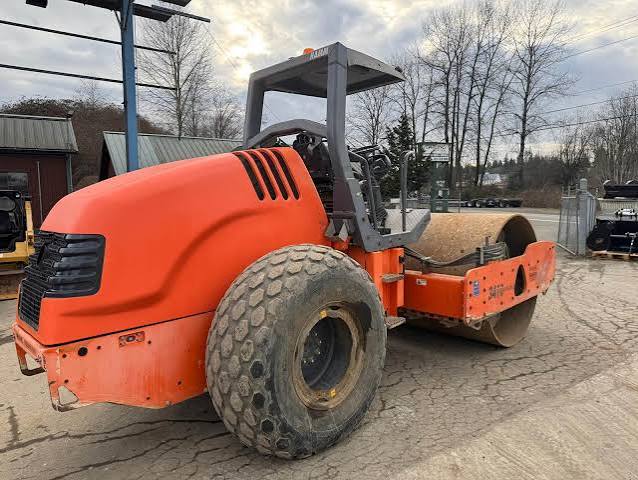

Hamm 3410 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: longsrental.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,226 lb
Operating weight ROPS22,741 lb
Operating weight Cabin23,226 lb
Fuel Capacity76.7 gal
Max Weight26,588 lb
Axle load - front12,544 lb
Axle load - rear10,681 lb

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Power Measured @2,300 rpm
Gross Power134.2 hp
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IIIA / EPA Tier 3
Engine Power - ISO 14396134.2 hp
Engine power@SAEJ1349134.2 hp
Exhaust Gas Recirculation (EGR)DOC-DPF-SCR

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab120 in
Overall Length224 in
Width Over Tires89 in
Turning Radius - Inside158 in
Overall Length w/o Blade224 in
Loadover height93 in
Angle of driving slope-Front31 °
Angle of driving slope-Rear34 °
Width over cab89 in

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 127 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High55,303 lb
Vibration Frequency 237 vpm
Static Linear Load12 lb-ft
Nominal Amplitude - Low0 in
Drum thickness2 in
Drum Typesmooth

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
Speed - working gear7.0 mph
Speed - transportation gear12.0 mph
