Hamm

3412 HT VIO

Smooth Drum Roller

Max Speed
14.0 mph
Drum Width
84 in
All smooth drum rollers

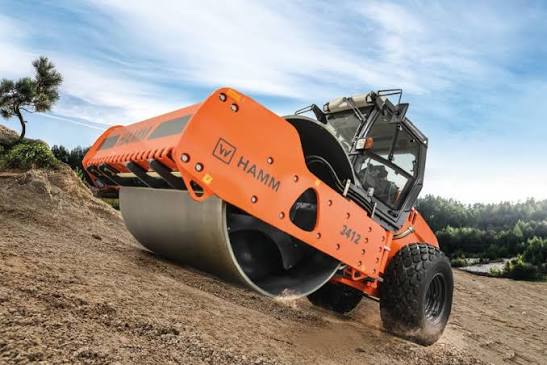

Hamm 3412 HT VIO Smooth Drum Roller
1 / 5
Image 1 of 5
Image: keegroup.com.au

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS25,805 lb
Operating weight Cabin26,290 lb
Max Speed14.0 mph
Fuel Capacity76.7 gal
Max Weight33,665 lb
Axle load - front14,782 lb
Axle load - rear12,114 lb

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IIIA / EPA Tier 3
Engine Power - ISO 14396134.2 hp
Engine power@SAEJ1349134.2 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Wheelbase119 in
Overall Length225 in
Turning Radius - Inside146 in
Loadover height93 in
Width over cab89 in
Angle of driving slope-Front31 °
Angle of driving slope-Rear34 °

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 133 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High62,722 lb
Static Linear Load14 lb-ft
Drum thickness1 in
Drum Typesmooth
Oscillation force - front51,706 lb
Oscillation frequency - front30 vpm
Tangential amplitude - front0 in

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
Speed - working gear7.0 mph
Speed - transportation gear11.0 mph
