Hamm

3516 HT

Smooth Drum Roller

Max Speed
14.0 mph
Drum Width
84 in
All smooth drum rollers

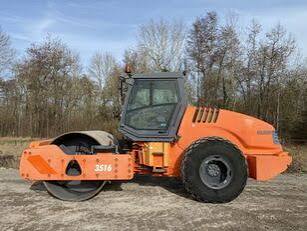

Hamm 3516 HT Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS34,249 lb
Operating weight Cabin34,734 lb
Max Speed14.0 mph
Fuel Capacity76.7 gal
Max Weight41,469 lb
Axle load - front20,514 lb
Axle load - rear14,220 lb

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IIIA / EPA Tier 3
Engine Power - ISO 14396207.9 hp
Engine power@SAEJ1349207.9 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab120 in
Wheelbase122 in
Overall Length239 in
Turning Radius - Inside173 in
Loadover height91 in
Angle of driving slope-Rear27 °
Angle of driving slope-Front31 °
Width over cab89 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High57,551 lb
Vibration Frequency 240 vpm
Static Linear Load36 lb-ft
Centrifugal Force - Low48,334 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Drum Typesmooth

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
