Hamm

3520 HT

Smooth Drum Roller

Drum Width
88 in
All smooth drum rollers

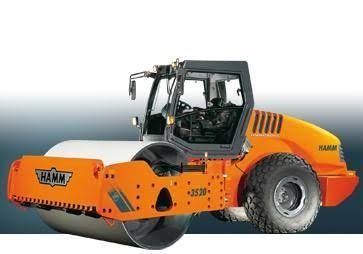

Hamm 3520 HT Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS43,167 lb
Operating weight Cabin43,652 lb
Fuel Capacity76.7 gal
Max Weight51,566 lb
Axle load - front27,536 lb
Axle load - rear16,116 lb

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Power Measured @2,300 rpm
Number of Cylinders6
Engine MakeDeutz
Emissions CertificationEU Stage IIIA / EPA Tier 3
Engine Power - ISO 14396207.9 hp
Engine power@SAEJ1349207.9 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab118 in
Wheelbase125 in
Overall Length245 in
Turning Radius - Inside166 in
Loadover height93 in
Angle of driving slope-Front34 °
Angle of driving slope-Rear27 °
Width over cab94 in

Drum

Drum specifications
Drum Width88 in
Drum Diameter63 in
Vibration Frequency 127 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High74,412 lb
Vibration Frequency 230 vpm
Static Linear Load26 lb-ft
Centrifugal Force - Low54,629 lb
Nominal Amplitude - Low0 in
Drum thickness2 in
Drum Typesmooth

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
Speed - working gear7.0 mph
Speed - transportation gear11.0 mph
