Hamm
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5

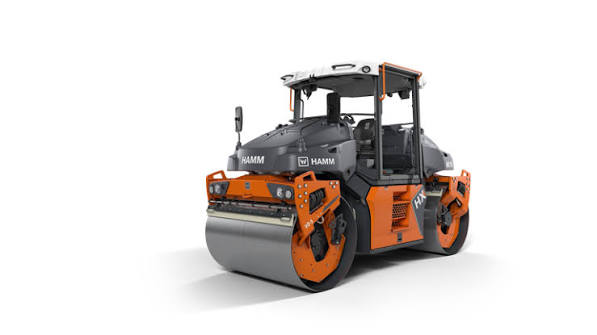

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 26,852 lb |
|---|---|
| Operating weight Cabin | 20,613 lb |
| Fuel Capacity | 42.3 gal |
| Water Spray Tank Fluid Capacity | 241.2 gal |
| Steering Angle | 4 ° |
Engine
| Engine Model | TCD 3.6 L4 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 99.8 hp |
| Net Power | 99.8 hp |
| Number of Cylinders | 4 |
| Engine Make | DEUTZ |
| Emissions Certification | EPA Tier 4 |
Dimensions
| Ground Clearance | 26 in |
|---|---|
| Height - Top of Cab | 118 in |
| Wheelbase | 128 in |
| Overall Length | 175 in |
| Overall Width | 74 in |
| Turning Radius - Inside | 119 in |
| Maximum width | 120,079 in |
Drum
| Drum Width | 66 in |
|---|---|
| Drum Diameter | 47 in |
| Vibration Frequency 1 | 42 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 17,535 lb |
| Vibration Frequency 2 | 50 vpm |
| Static Linear Load | 13 lb-ft |
| Drum thickness | 1 in |
| Drum Type | smooth/divided |
| Oscillation force , rear -1 | 24,504 lb |
| Oscillation frequency , rear - 1 | 36 vpm |
| Tangential amplitude , rear - 1 | 0 in |
Speeds
| Speed - working gear | 6.3 mph |
|---|
