Hamm
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5

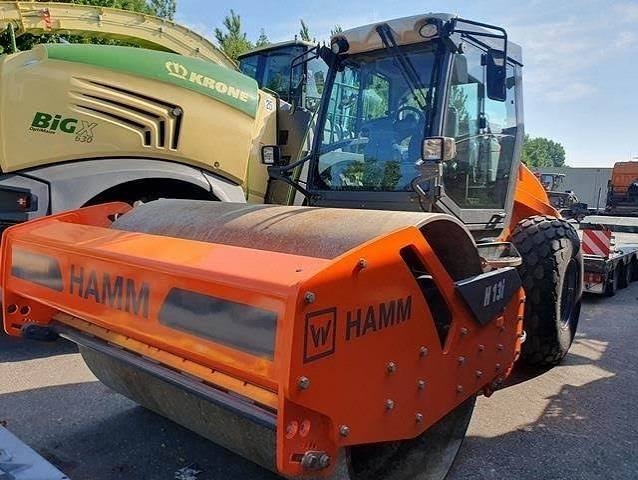

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating weight ROPS | 27,227 lb |
|---|---|
| Operating weight Cabin | 27,800 lb |
| Fuel Capacity | 74.0 gal |
| Max Weight | 34,436 lb |
| Axle load - front | 15,135 lb |
| Axle load - rear | 12,666 lb |
Engine
| Engine Model | TCD 4.1 L4 |
|---|---|
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 4 |
| Engine Make | Deutz |
| Emissions Certification | EU Stage IIIB / EPA Tier 4 |
| Engine Power - ISO 14396 | 154.3 hp |
| Engine power@SAEJ1349 | 154.3 hp |
| Exhaust Gas Recirculation (EGR) | DOC-SCR |
| Diesel Fuel Tank Capacity - Standard Tank | 8.5 gal |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 118 in |
| Wheelbase | 124 in |
| Overall Length | 230 in |
| Turning Radius - Inside | 152 in |
| Loadover height | 91 in |
| Width over cab | 90 in |
| Angle of driving slope-Rear | 32 ° |
| Angle of driving slope-Front | 53 ° |
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 59 in |
| Vibration Frequency 1 | 33 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 62,722 lb |
| Static Linear Load | 15 lb-ft |
| Drum thickness | 1 in |
| Drum Type | smooth |
| Oscillation force - front | 51,706 lb |
| Oscillation frequency - front | 30 vpm |
| Tangential amplitude - front | 0 in |
Steering System
| Steering Method | Articulated steering |
|---|---|
| Oscillating angle | 10 ° |
Speeds
| Size of tyres, rear | AW 23.1-26 12 PR |
|---|---|
| Speed - transportation gear | 12.0 mph |
