Hamm

H 14i

Smooth Drum Roller

Max Speed
12.0 mph
Drum Width
84 in
All smooth drum rollers

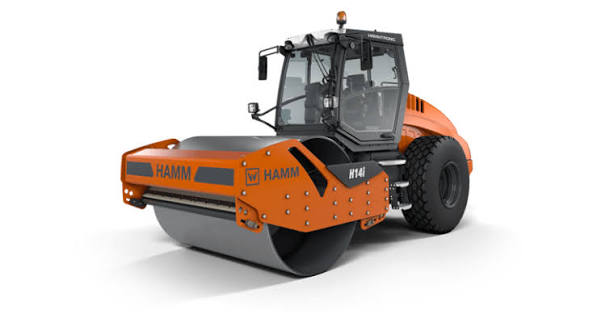

Hamm H 14i Smooth Drum Roller
1 / 5
Image 1 of 5
Image: rdoequipment.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS29,597 lb
Operating weight Cabin30,170 lb
Max Speed12.0 mph
Fuel Capacity74.0 gal
Max Weight36,222 lb
Axle load - front16,722 lb
Axle load - rear13,448 lb

Engine

Engine specifications
Engine ModelTCD 4.1 L4
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IIIB / EPA Tier 4
Engine Power - ISO 143961,542.2 hp
Engine power@SAEJ13491,542.2 hp
Exhaust Gas Recirculation (EGR)DOC-DPF-SCR
Diesel Fuel Tank Capacity - Standard Tank8.5 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length230 in
Turning Radius - Inside152 in
Loadover height91 in
Angle of driving slope-Rear32 °
Angle of driving slope-Front53 °
Width over cab90 in

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High4 in
Centrifugal Force - High37,318 lb
Vibration Frequency 236 vpm
Static Linear Load29 lb-ft
Drum thickness1 in
Drum Typesmooth

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
