Hamm

H13i C

Smooth Drum Roller

Max Speed
10.0 mph
Drum Width
84 in
All smooth drum rollers

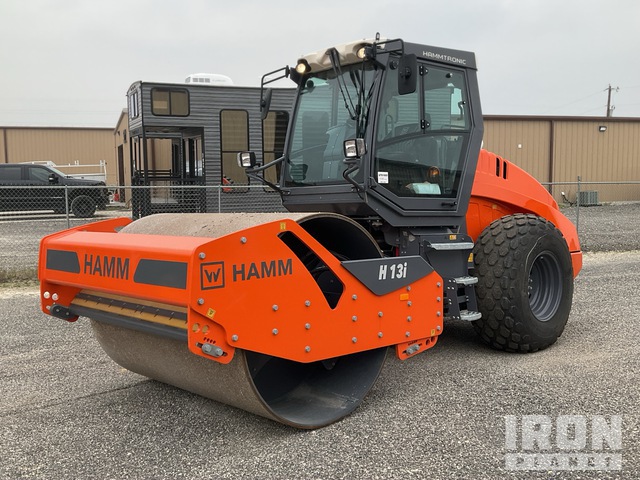

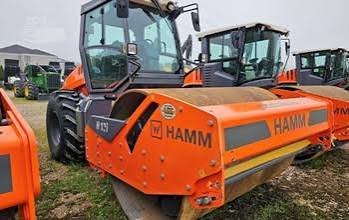

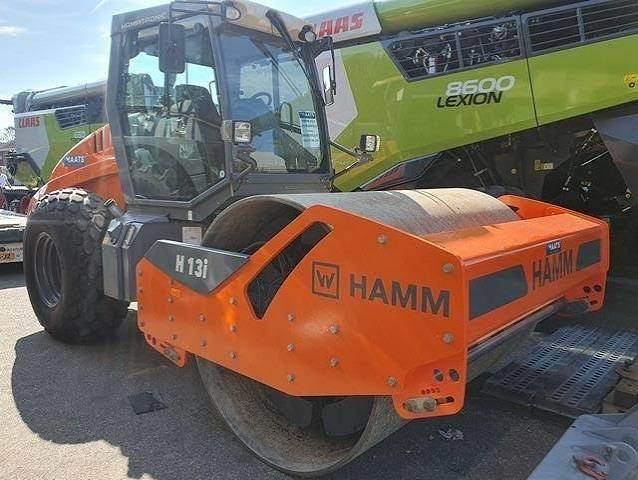

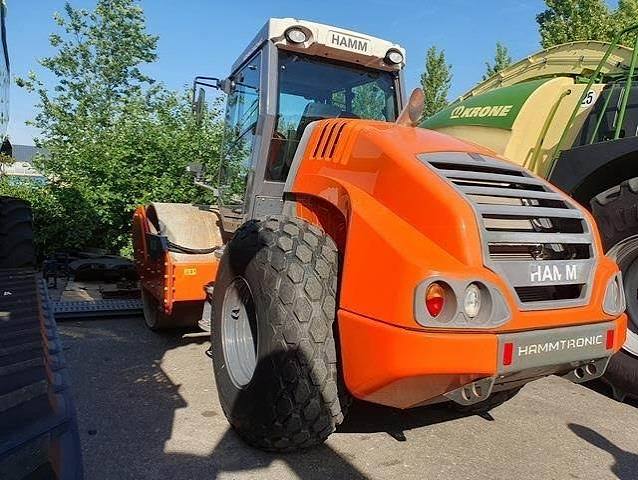

Hamm H13i C Smooth Drum Roller
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS28,506 lb
Operating weight Cabin29,079 lb
Max Speed10.0 mph
Fuel Capacity74.0 gal
Max Weight35,715 lb
Axle load - front16,281 lb
Axle load - rear12,798 lb

Engine

Engine specifications
Engine ModelTCD 4.1 L4
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeDeutz
Emissions CertificationEU Stage IIIB / EPA Tier 4
Engine Power - ISO 14396154.3 hp
Engine power@SAEJ1349154.3 hp
Exhaust Gas Recirculation (EGR)DOC-DPF-SCR
Diesel Fuel Tank Capacity - Standard Tank8.5 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase124 in
Overall Length230 in
Turning Radius - Inside152 in
Loadover height91 in
Angle of driving slope-Front53 °
Width over cab90 in
Angle of driving slope-Rear32 °

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High55,978 lb
Vibration Frequency 236 vpm
Static Linear Load29 lb-ft
Centrifugal Force - Low37,318 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Drum Typesmooth

Steering System

Steering System specifications
Steering MethodArticulated steering
Oscillating angle10 °

Speeds

Speeds specifications
Size of tyres, rearAW 23.1-26 12 PR
