Hamm

H25i VC

Smooth Drum Roller

Operating Weight
56,306 lb
Max Speed
5.0 mph
Drum Width
88 in
Gross Power
214.6 hp
All smooth drum rollers

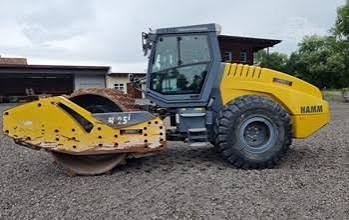

Hamm H25i VC Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com.au

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,306 lb
Max Speed5.0 mph
Fuel Capacity74.0 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab55,149 lb

Engine

Engine specifications
Engine ModelTCD 6.1 L6
Power Measured @2,300 rpm
Gross Power214.6 hp
Net Power214.6 hp
Number of Cylinders6
Engine MakeDEUTZ
Emissions levelEU Stage IIIB / EPA Tier 4i

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab118 in
Wheelbase126 in
Overall Length260 in
Overall Width101 in
Turning Radius - Inside189 in

Tires & Wheels

Tires & Wheels specifications
TiresEM 23.5-R25 XTLA

Drum

Drum specifications
Drum Width88 in
Drum Diameter67 in
Vibration Frequency 127 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High78,908 lb
Drum thickness1 in
