Hamm

HD 075V (Oscillation)

Smooth Drum Roller

Operating Weight
18,078 lb
Drum Width
66 in
Gross Power
75.4 hp
All smooth drum rollers

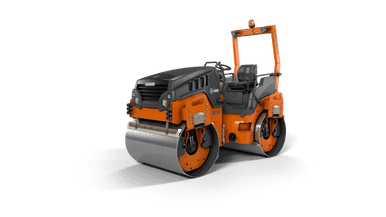

Hamm HD 075V (Oscillation) Smooth Drum Roller
1 / 5
Image 1 of 5
Image: rdoequipment.com

Specifications

13 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,078 lb
Fuel Capacity34.4 gal

Engine

Engine specifications
Engine ModelBF4M1011F
Power Measured @2,500 rpm
Gross Power75.4 hp

Dimensions

Dimensions specifications
Height - Top of Cab115 in
Overall Length14 in

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 150 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High23,380 lb
Centrifugal Force - Low14,388 lb
Nominal Amplitude - Low0 in
